Engine Mechanical (H4DO): V-belt: Removal: V-Belt

  1. Remove the V-belt covers.
    Fig 1: Locating V-Belt Cover Mounting Bolts
    G08579987Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air intake duct. Refer to REMOVAL .
  3. Attach the tool to the V-belt tensioner assembly, and rotate the tool clockwise to loosen and remove the V-belt.

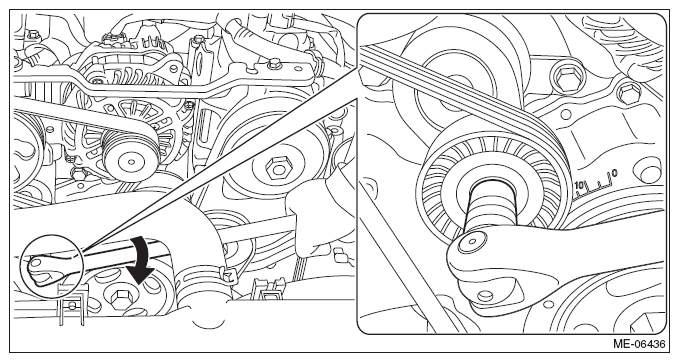

    Fig 2: Removing V-Belt Using Tool
    G08580054Courtesy of SUBARU OF AMERICA, INC.
