Engine Mechanical (H4DO): V-belt: Inspection

  1. Check the V-belt for cracks, tear or wear.
  2. Check the V-belt tensioner assembly and idler pulley for deformation, cracks or other damages.
  3. Check that the V-belt ribs are securely placed on the rib grooves for each pulleys.
    Fig 1: Identifying Proper And Improper Condition Of V-Belt
    G08562917Courtesy of SUBARU OF AMERICA, INC.

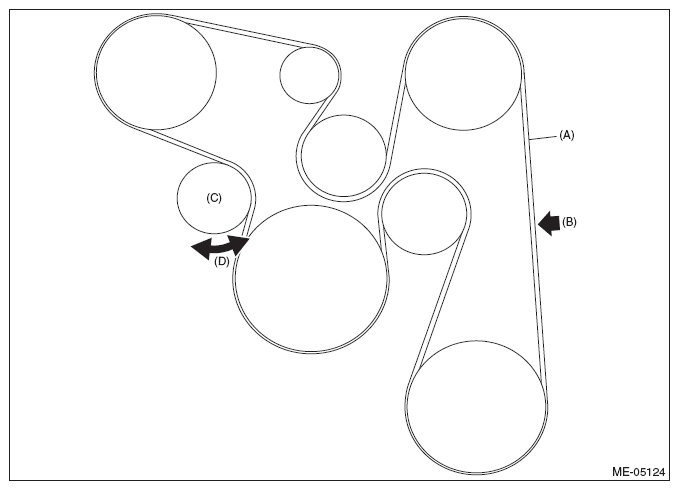

  4. Check that the V-belt tensioner assembly (C) moves in the direction of arrow (D), when the V-belt (A) is pushed and released by the area indicated by the arrow (B).
    G08316896Courtesy of SUBARU OF AMERICA, INC.
