Cylinder Head

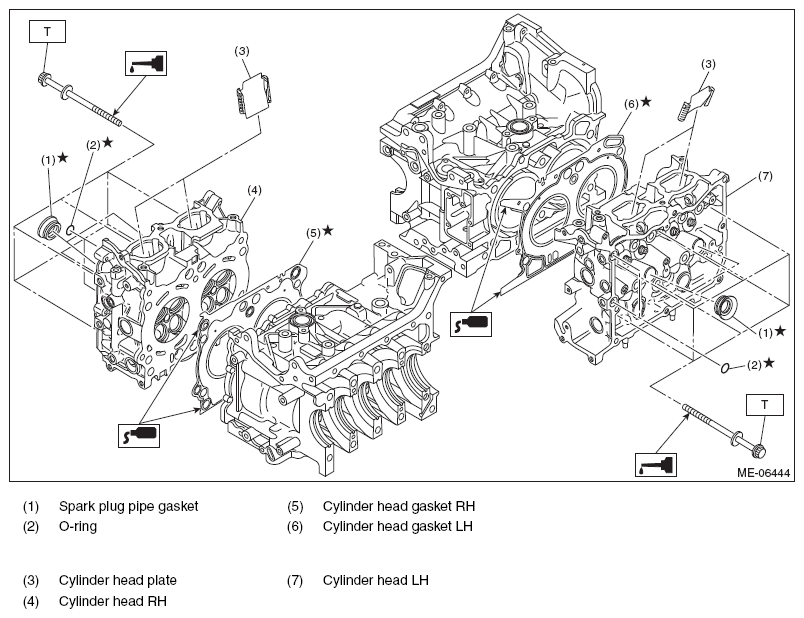

Fig 1: Identifying Cylinder Head And Related Components

G08579932

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: Refer to INSTALLATION .
