Cam Carrier

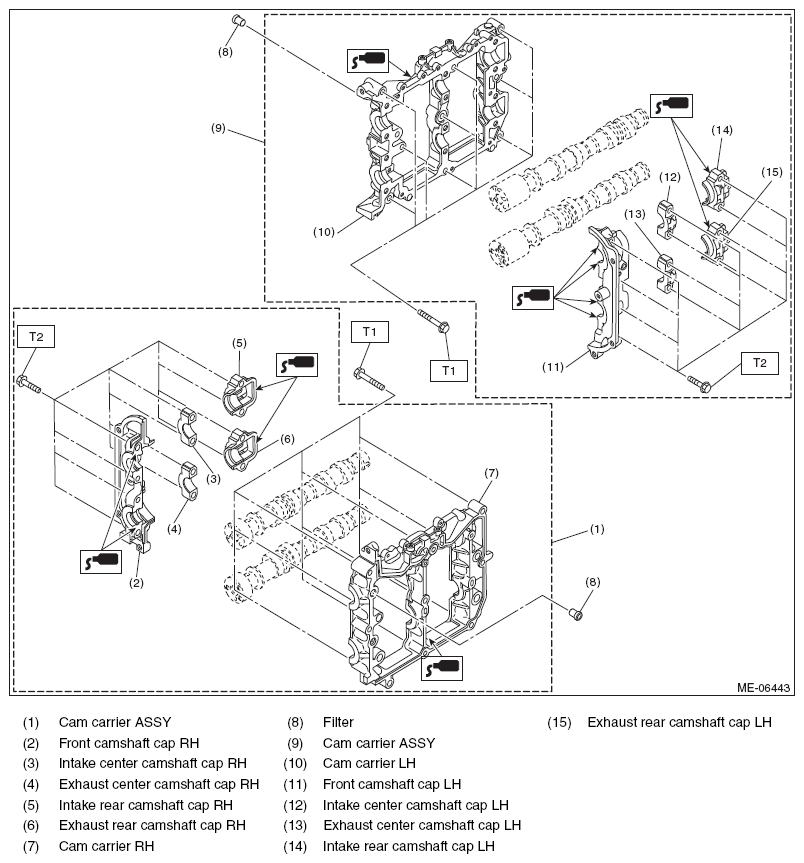

Fig 1: Identifying Cam Carrier And Related Components
G08579931Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: Refer to  ASSEMBLY  .

T2: Refer to  INSTALLATION  .
