Crank Pulley: Removal

NOTE: When replacing a single part, perform the work with the engine assembly installed to body.

Remove the V-belts. Refer to REMOVAL .
Use the ST to lock the crank pulley, and remove the crank pulley bolt.
NOTE: To prevent damaging ST1, attach the ST2 onto the ST1 as shown.

ST1 18355AA000 PULLEY WRENCH

ST2 18334AA000 PULLEY WRENCH PIN SET

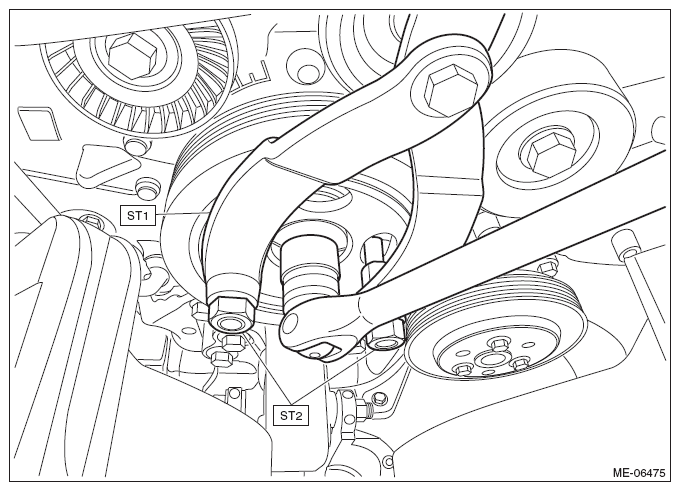

Fig 1: Removing Crank Pulley Bolt
Courtesy of SUBARU OF AMERICA, INC.

ST1 18355AA000 PULLEY WRENCH

ST2 18334AA000 PULLEY WRENCH PIN SET

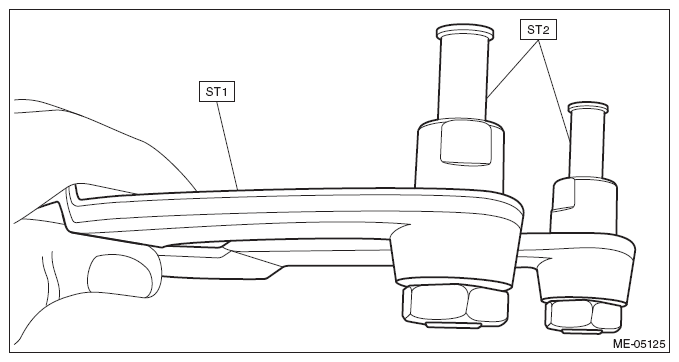

Fig 2: Tightening Crank Pulley Bolt Using Tool
Courtesy of SUBARU OF AMERICA, INC.
Remove the crank pulley and remove the crank pulley boss.

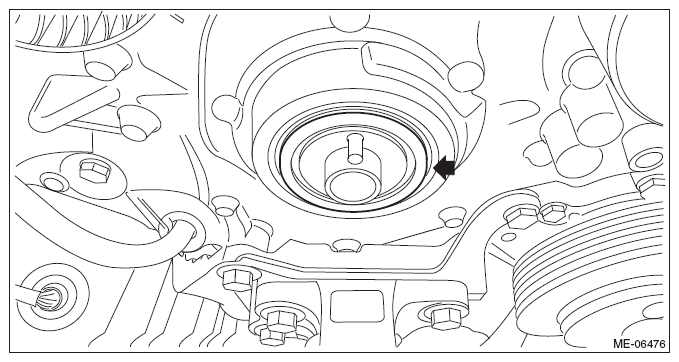

Fig 3: Locating Crank Pulley Boss
Courtesy of SUBARU OF AMERICA, INC.

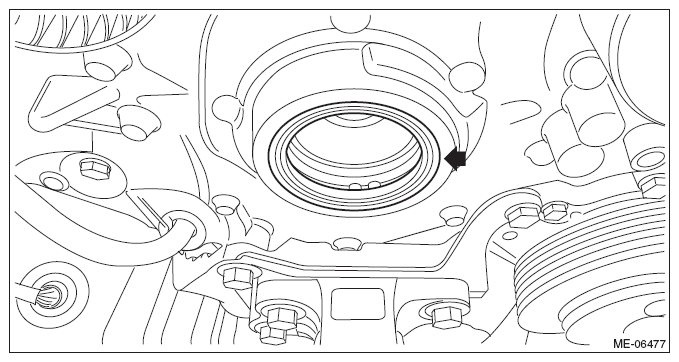

Remove the front oil seal.

Fig 4: Locating Front Oil Seal
Courtesy of SUBARU OF AMERICA, INC.
