Cam Carrier RH

  1. Loosen the bolts (front camshaft cap RH, intake center camshaft cap RH, intake rear camshaft cap RH, exhaust center camshaft cap RH, and exhaust rear camshaft cap RH) equally, a little at a time in numerical sequence as shown in the figure, and remove each camshaft cap.
    NOTE: Arrange camshaft caps in order so that they can be installed in their original positions.

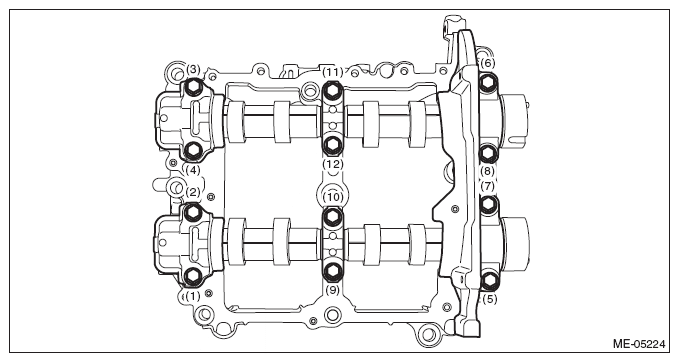

    Fig 1: Identifying Loosening Sequence Of Cam Carrier RH Mounting Bolts
    G08317064Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the intake camshaft RH and the exhaust camshaft RH from cam carrier RH.

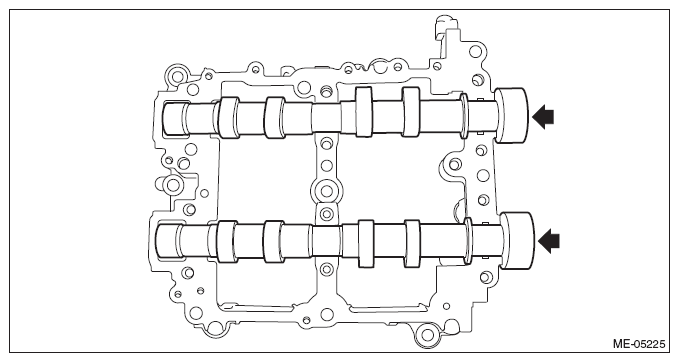

    Fig 2: Locating Intake And Exhaust Camshaft RH
    G08317065Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the filter from cam carrier RH.

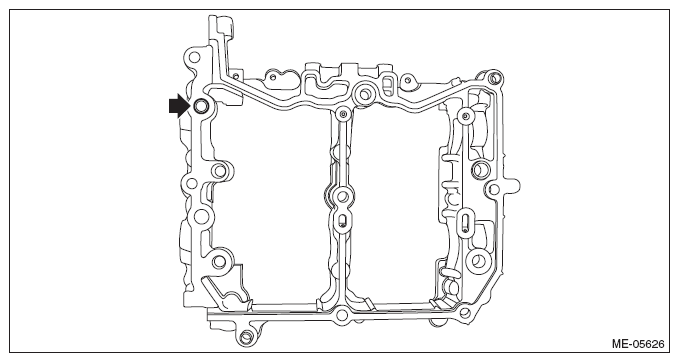

    Fig 3: Locating Cam Carrier RH Filter
    G08580228Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the liquid gasket from cam carrier RH and front camshaft cap RH, intake rear camshaft cap RH and exhaust rear camshaft cap RH.
