Oil Pressure System: Wiring Diagram

Oil pressure warning system. See appropriate SYSTEM WIRING DIAGRAM article.

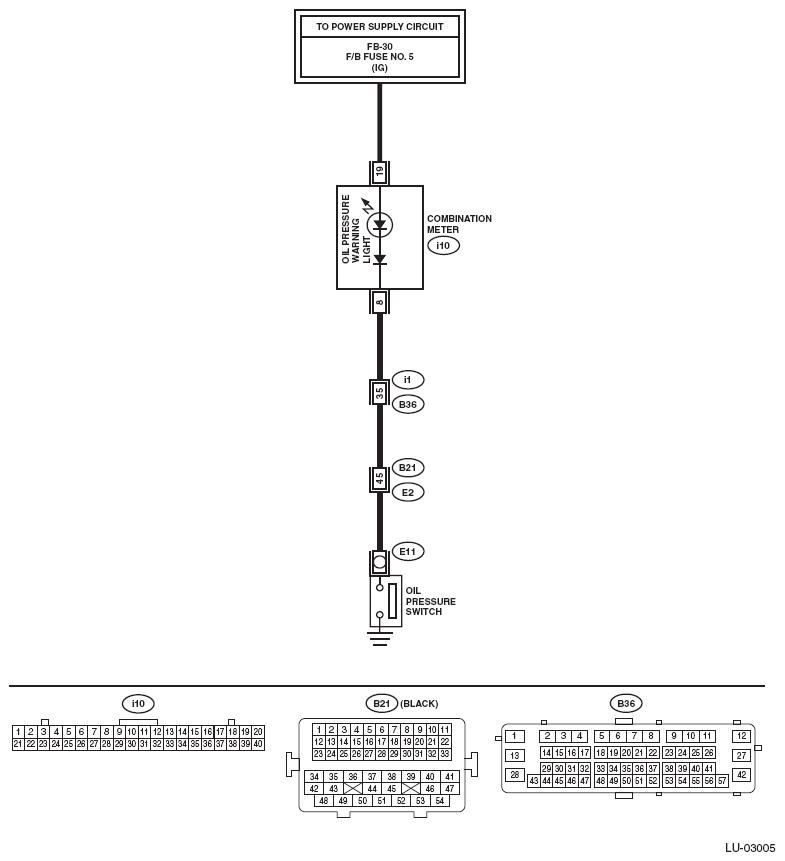

Fig 1: Oil Pressure System - Wiring Diagram

G08580506

Courtesy of SUBARU OF AMERICA, INC.
