Oil Pan

NOTE:

Before installing the oil pan, wipe and clean the mating surface of oil pan and oil pan upper.
Use a new oil pan seal ring.

Apply liquid gasket to the mating surfaces of oil pan upper, and install the oil pan.
NOTE: Install within 5 min. after applying liquid gasket.

Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100) or equivalent

Liquid gasket applying diameter:

5±1 mm (0.1969±0.0394 in)

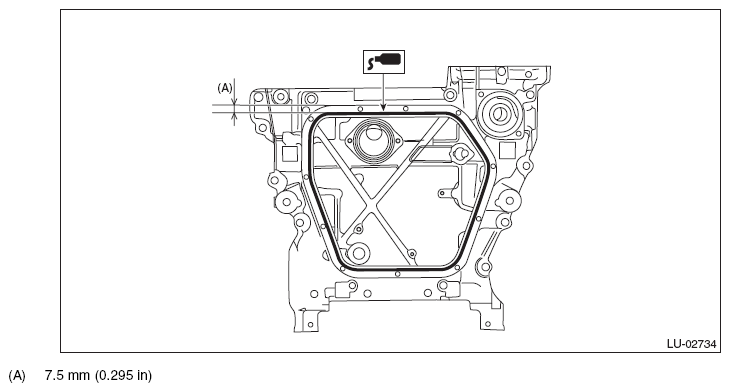

Fig 1: Applying Liquid Gasket To Mating Surfaces Of Oil Pan Upper
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts to install the oil pan to the oil pan upper in the numerical order.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

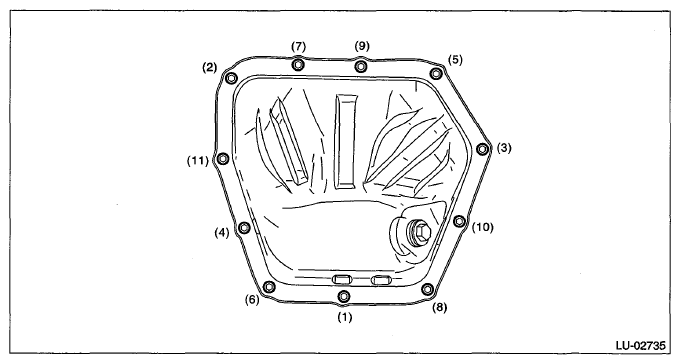

Fig 2: Identifying Oil Pan To Oil Pan Upper Mounting Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. Refer to INSTALLATION .
Install the under cover. Refer to INSTALLATION .
Lower the vehicle.
Connect the battery ground terminal.

Fig 3: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Refill the engine oil. Refer to REPLACEMENT .
