Rear Exhaust Pipe: Installation

Apply a coat of spray type lubricant to the mating area of cushion rubber.
Install the rear exhaust pipe to cushion rubber.
NOTE: After assembling, degrease the lubricant which was applied to the cushion rubber while removing/installing.

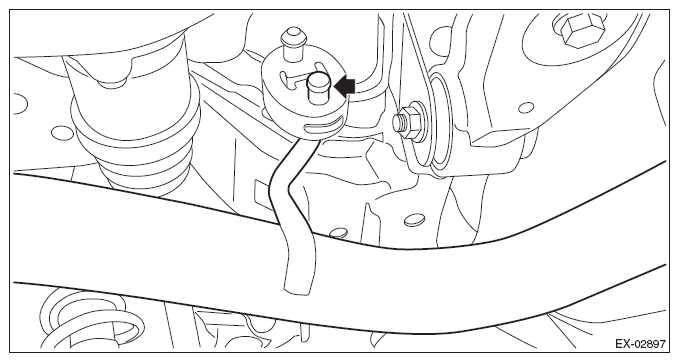

Fig 1: Locating Rear Exhaust Pipe From Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
Install the rear exhaust pipe to the muffler.
NOTE: Use a new gasket and self-locking nut.

Tightening torque: 48 N.m (4.9 kgf-m, 35.4 ft-lb)

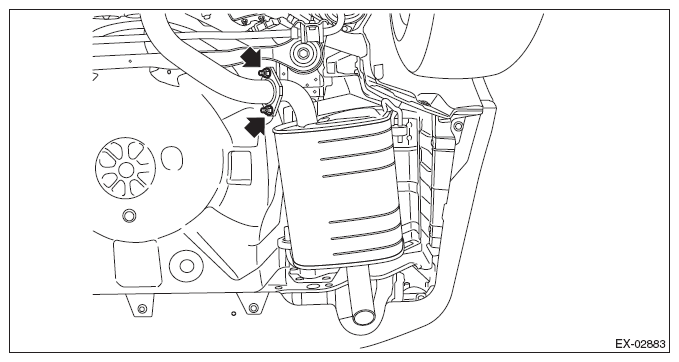

Fig 2: Locating Nuts And Muffler From Rear Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe to rear exhaust pipe.
NOTE: Use a new gasket.

Tightening torque: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 3: Locating Center Exhaust Pipe To Rear Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
