Exhaust System (H4DO): Muffler: Installation

Install in the reverse order of removal.

NOTE:

Use a new gasket and self-locking nut.
After assembling, degrease the lubricant which was applied to the cushion rubber while removing/installing.

Tightening torque: 10 N.m (1.0 kgf-m, 7.4 ft-lb)

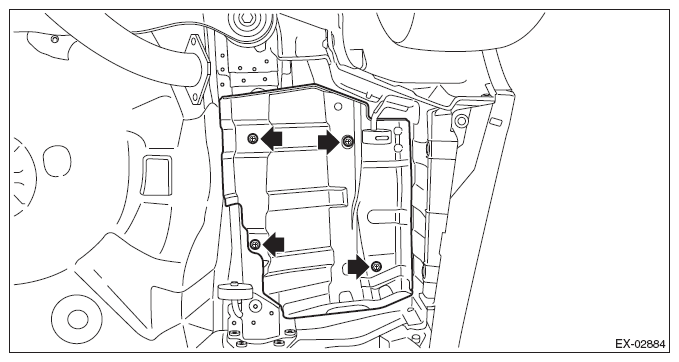

Fig 1: Locating Heat Shield Cover From Vehicle

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 48 N.m (4.9 kgf-m, 35.4 ft-lb)

Fig 2: Locating Nuts And Muffler From Rear Exhaust Pipe

Courtesy of SUBARU OF AMERICA, INC.
