Rear Exhaust Pipe And Muffler

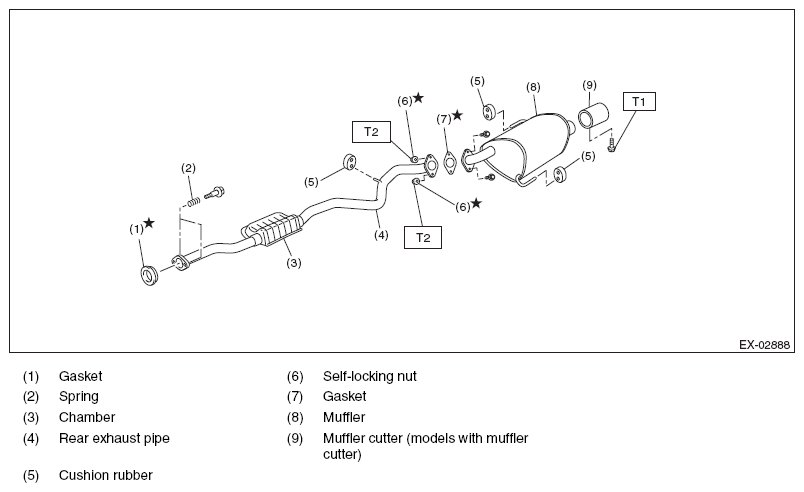

Fig 1: Rear Exhaust Pipe And Muffler Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 48 (4.9, 35.4)
