Engine Cooling System (H4DO): Thermostat: Installation

  1. Install a gasket to thermostat.
    NOTE: Use a new gasket.
  2. Install the thermostat and thermostat cover.
    NOTE: Use a new gasket.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

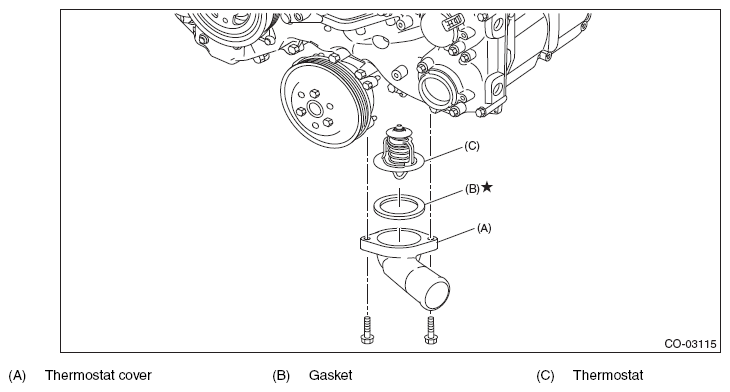

    Fig 1: Identifying Thermostat Cover, Gasket And Thermostat
    G08580467Courtesy of SUBARU OF AMERICA, INC.
  3. Connect the radiator outlet hose to thermostat cover.

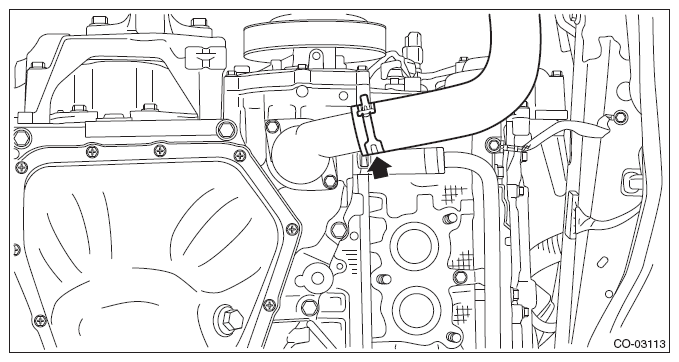

    Fig 2: Locating Radiator Outlet Hose To Thermostat Cover
    G08580465Courtesy of SUBARU OF AMERICA, INC.
  4. Install the front exhaust pipe. Refer to INSTALLATION .
  5. Install the under cover. Refer to INSTALLATION .
  6. Lower the vehicle.
  7. Connect the battery ground terminal.
    Fig 3: Connecting Battery Ground Terminal
    G08579605Courtesy of SUBARU OF AMERICA, INC.
  8. Fill engine coolant. Refer to FILLING OF ENGINE COOLANT .
