Reservoir Tank: Removal

  1. Disconnect the over flow hose (A) connected to the radiator filler neck from the reservoir tank.
  2. Pull out the reservoir tank to the arrow direction while pushing the claw (B).

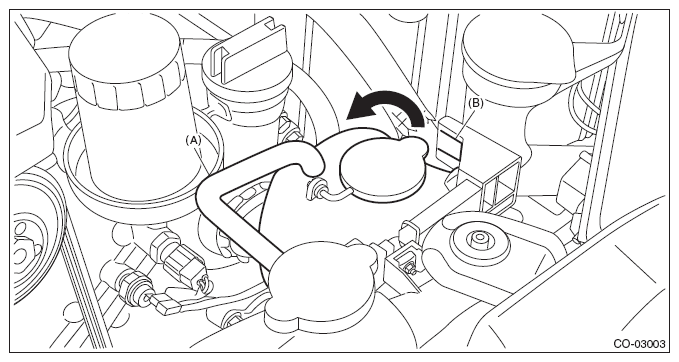

    Fig 1: Pulling Reservoir Tank
    G08580500Courtesy of SUBARU OF AMERICA, INC.
