Radiator Sub Fan and Fan Motor: Disassembly

  1. Remove the clip which holds the sub fan motor assembly connector onto the radiator sub fan shroud.
  2. Remove the sub fan motor assembly from the radiator sub fan shroud.

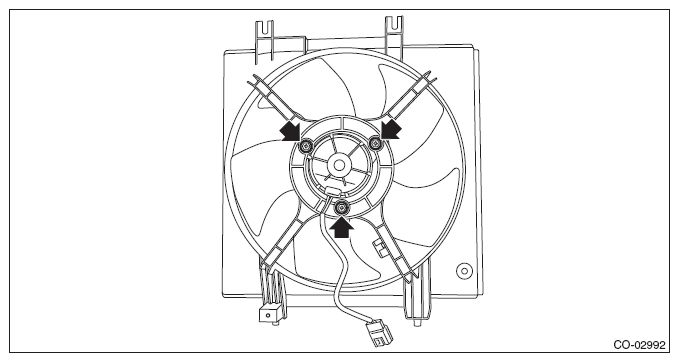

    Fig 1: Locating Sub Fan Motor Assembly From Radiator Sub Fan Shroud
    G08580499Courtesy of SUBARU OF AMERICA, INC.
