Radiator Main Fan and Fan Motor: Disassembly

  1. Remove the clip which holds the main fan motor assembly connector onto the radiator main fan shroud.
  2. Remove the main fan motor assembly from the radiator main fan shroud.

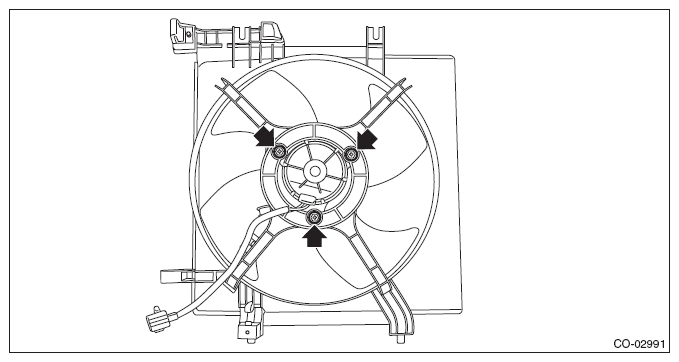

    Fig 1: Locating Main Fan Motor Assembly From Radiator Main Fan Shroud
    G08580495Courtesy of SUBARU OF AMERICA, INC.
