Radiator Fan System: Wiring Diagram

Radiator fan system. See appropriate SYSTEM WIRING DIAGRAM article.

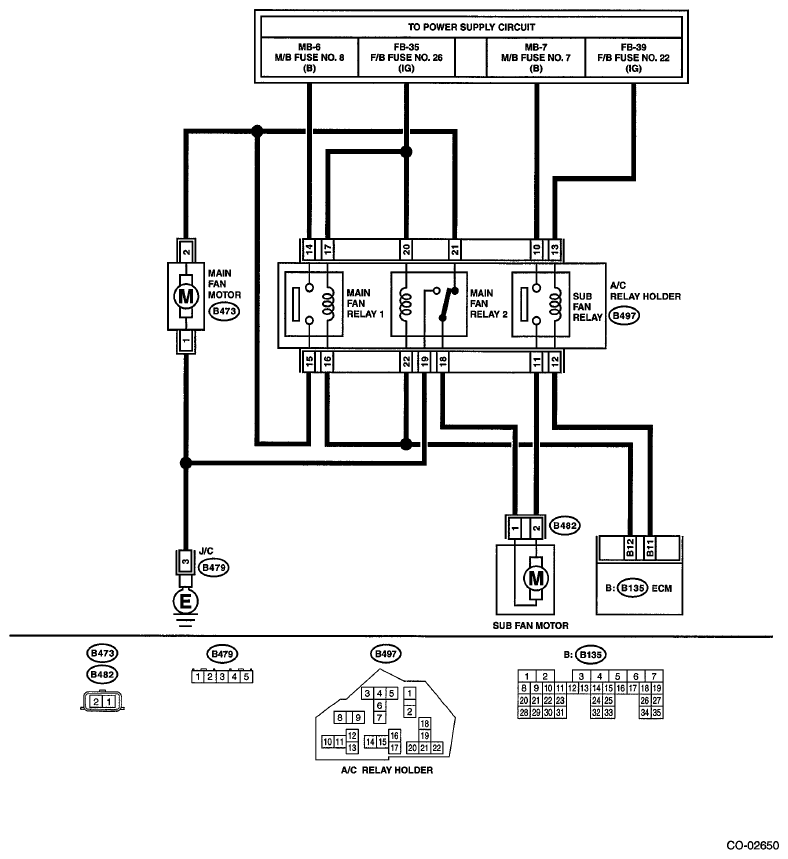

Fig 1: Radiator Fan System Wiring Diagram

G06650876

Courtesy of SUBARU OF AMERICA, INC.
