Radiator & Radiator Fan

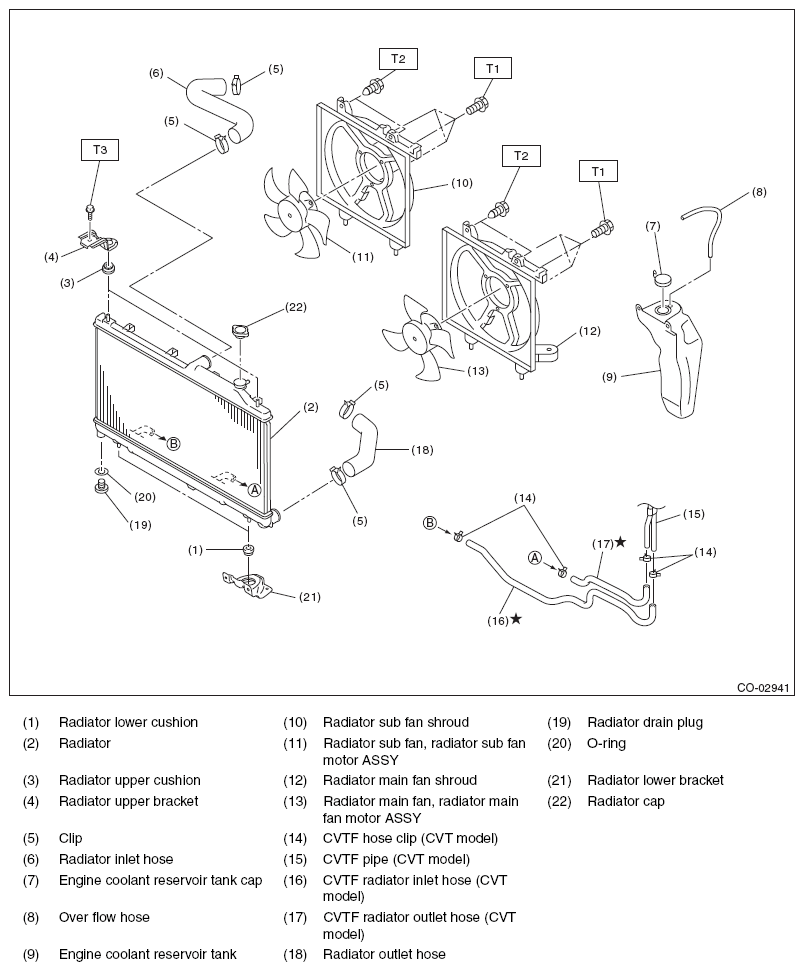

Fig 1: Radiator & Radiator Fan Replacement Components With Torque Specifications
G08580449Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 7.5 (0.8, 5.5)

T3: 12 (1.2, 8.9)
