Purge Control Solenoid Valve: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which holds the purge control solenoid valve onto intake manifold.
NOTE: Hold the purge control solenoid valve unit by hand to prevent it from rotating together.

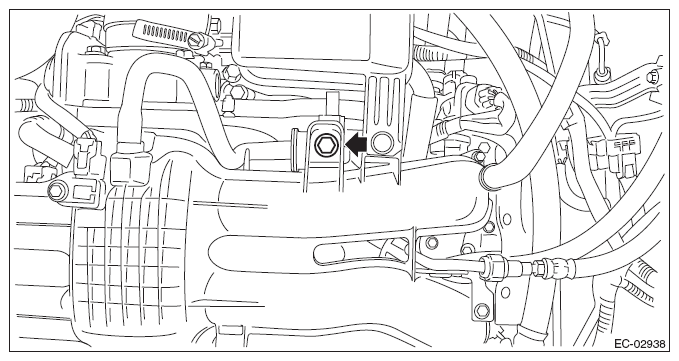

Fig 2: Locating Purge Control Solenoid Valve Bolt
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the vacuum hose from the intake manifold and intake manifold clip (A).

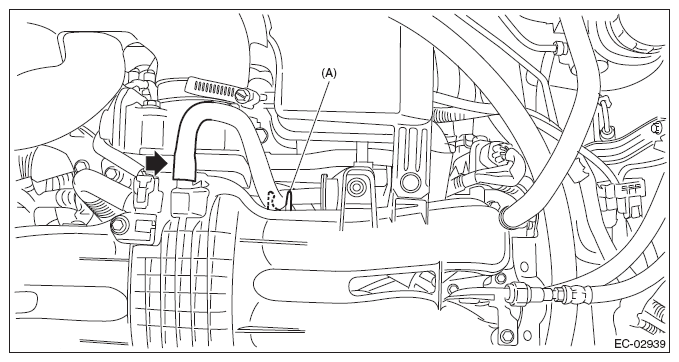

Fig 3: Locating Intake Manifold Vacuum Hose
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the vacuum hose (A) and connector (B) from the purge control solenoid valve, and remove the purge control solenoid valve.

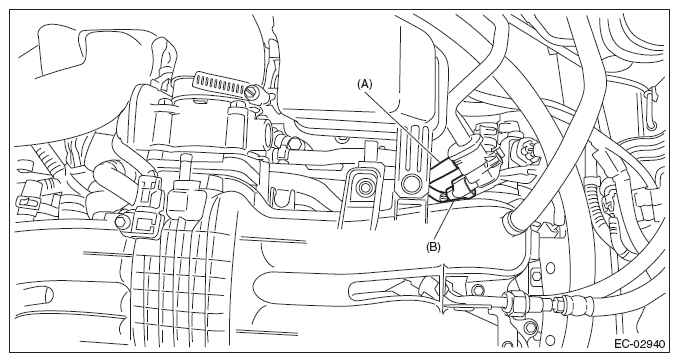

Fig 4: Identifying Vacuum Hose And Purge Control Solenoid Valve Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the vacuum hose from the purge control solenoid valve.

Fig 5: Locating Purge Control Solenoid Valve Vacuum Hose
Courtesy of SUBARU OF AMERICA, INC.
