PCV Valve: Removal

CAUTION: Do not remove unless the PCV valve is broken.
  1. Disconnect the vacuum hose from the intake manifold and the PCV valve.

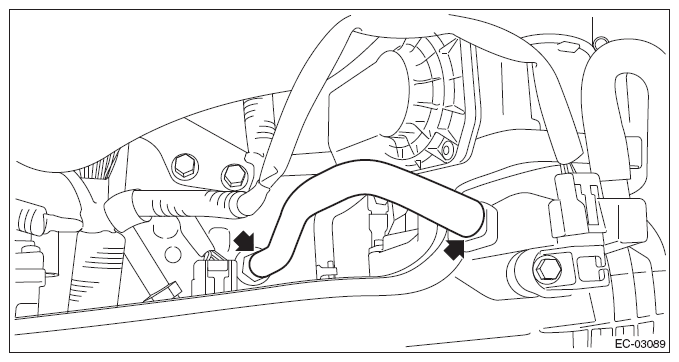

    Fig 1: Locating Vacuum Hose Ends
    G08579924Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the PCV valve from the cylinder block RH.

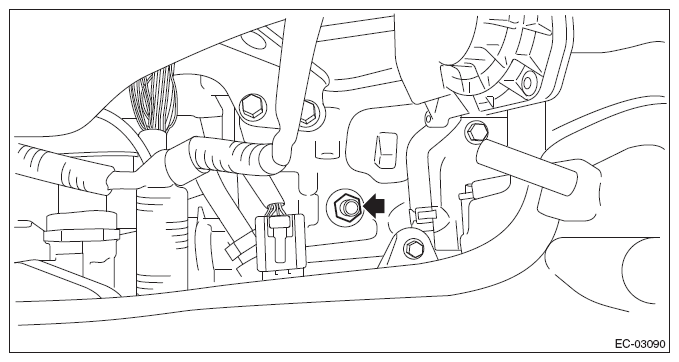

    Fig 2: Locating PCV Valve
    G08579925Courtesy of SUBARU OF AMERICA, INC.
