PCV Hose Assembly: Removal

CAUTION: Do not remove except when the PCV hose is broken.
  1. Remove the intake manifold. Refer to REMOVAL .
  2. Remove the PCV hose assembly from the PCV connector.

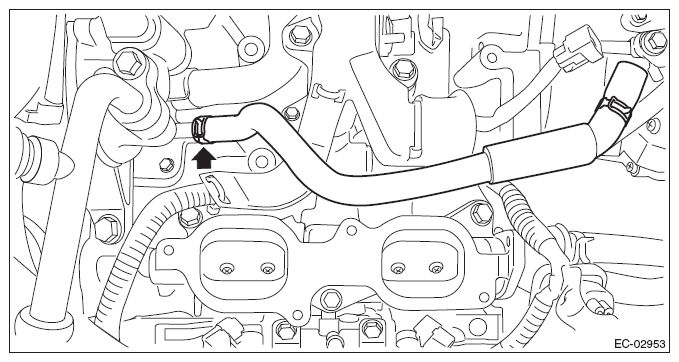

    Fig 1: Locating PCV Hose Clips
    G08315666Courtesy of SUBARU OF AMERICA, INC.
