EGR Control Valve: Installation

Install in the reverse order of removal.

Tightening torque:

22 N.m (2.2 kgf-m, 16.2 ft-lb)

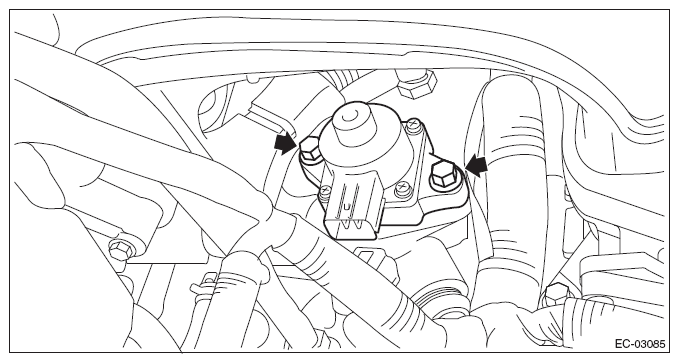

Fig 1: Locating EGR Control Valve Mounting Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

3 N.m (0.3 kgf-m, 2.2 ft-lb)

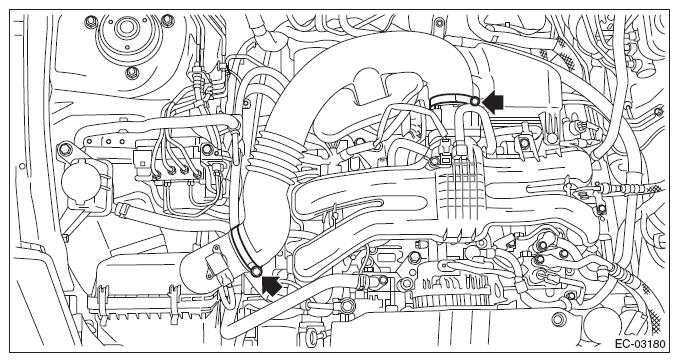

Fig 2: Locating Air Intake Boot Clamps

Courtesy of SUBARU OF AMERICA, INC.
