Rear Axle: Installation

Temporarily tighten the rear axle housing to the upper arm.
Aligning with the mounting hole of the rear brake back plate, temporarily tighten the rear hub unit bearing to the rear axle housing.
CAUTION:
- Be careful not to damage the magnetic encoder.
- Do not get closer the tool which charged magnetism to magnetic encoder.

  Fig 1: Identifying Magnetic Encoder And Rear Hub Unit Bearing
  Courtesy of SUBARU OF AMERICA, INC.

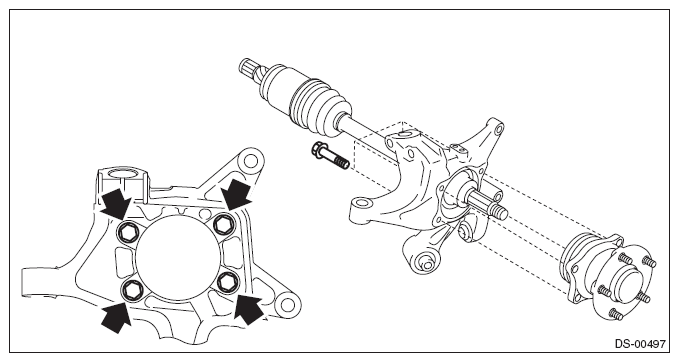

  Fig 2: Installing Rear Hub Unit Bearing
  Courtesy of SUBARU OF AMERICA, INC.
Attach the rear drive shaft to the rear hub unit bearing.
Tighten the new axle nut temporarily.
CAUTION: Use new axle nuts.
Attach the links to the rear axle housing and tighten them to the specified torque.
CAUTION: Be careful not to damage the boot of the joint.

Tightening torque:

Upper arm: 80 N.m (8.2 kgf-m, 59 ft-lb)

Front lateral link: 60 N.m (6.1 kgf-m, 44.3 ft-lb)

Rear lateral link: 80 N.m (8.2 kgf-m, 59 ft-lb)

Trailing link: 80 N.m (8.2 kgf-m, 59 ft-lb)
Tighten the rear hub unit bearing.

Fig 3: Locating Rear Hub Unit Bearing Bolts
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

65 N.m (6.63 kgf-m, 47.9 ft-lb)
Install the rear disc rotor.
Install the rear disc brake.
Tightening torque:

66 N.m (6.73 kgf-m, 48.7 ft-lb)
Install the brake hose bracket and rear ABS wheel speed sensor.
Tightening torque:

Brake hose bracket: 33 N.m (3.36 kgf-m, 24.3 ft-lb)

Rear ABS wheel speed sensor: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
While pressing the brake pedal, tighten the new axle nuts to the specified torque.
CAUTION: Do not load the rear axle before tightening the axle nut. Doing so may damage the hub bearing.

Tightening torque:

240 N.m (24.47 kgf-m, 177 ft-lb)
Inspect the lean of axis direction using a dial gauge. Replace the bearing if the load range exceeds the limitation.

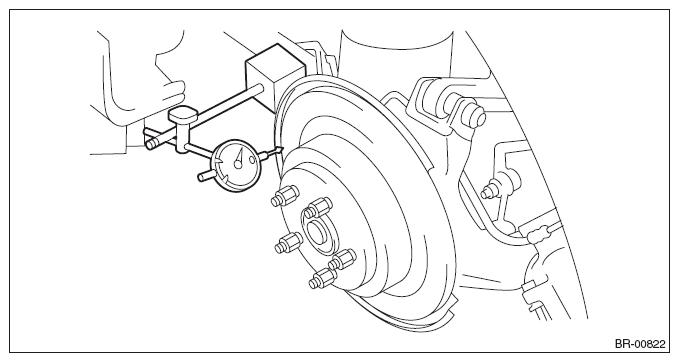

Fig 4: Inspecting Lean Of Axis Direction Using Dial Gauge
Courtesy of SUBARU OF AMERICA, INC.

Service limit:

Maximum: 0.05 mm (0.0020 in)
After tightening the axle nut, lock it securely.

Fig 5: Locking Axle Nut
Courtesy of SUBARU OF AMERICA, INC.
Install the rear wheels.
Tightening torque:

120 N.m (12.24 kgf-m, 88.5 ft-lb)
Moving the rear tire up and down by hand, check there is no backlash in bearing, and check the wheel rotates smoothly.
CAUTION: If there is any fault in the bearing, replace hub unit bearing.

Fig 6: Checking Bearing Backlash
Courtesy of SUBARU OF AMERICA, INC.
Inspect the wheel alignment and adjust if necessary.
- Inspection: Refer to INSPECTION .
- Adjustment: Refer to ADJUSTMENT .
