General Description
>>
Components With Torque Specifications
>>
Propeller Shaft
Propeller Shaft

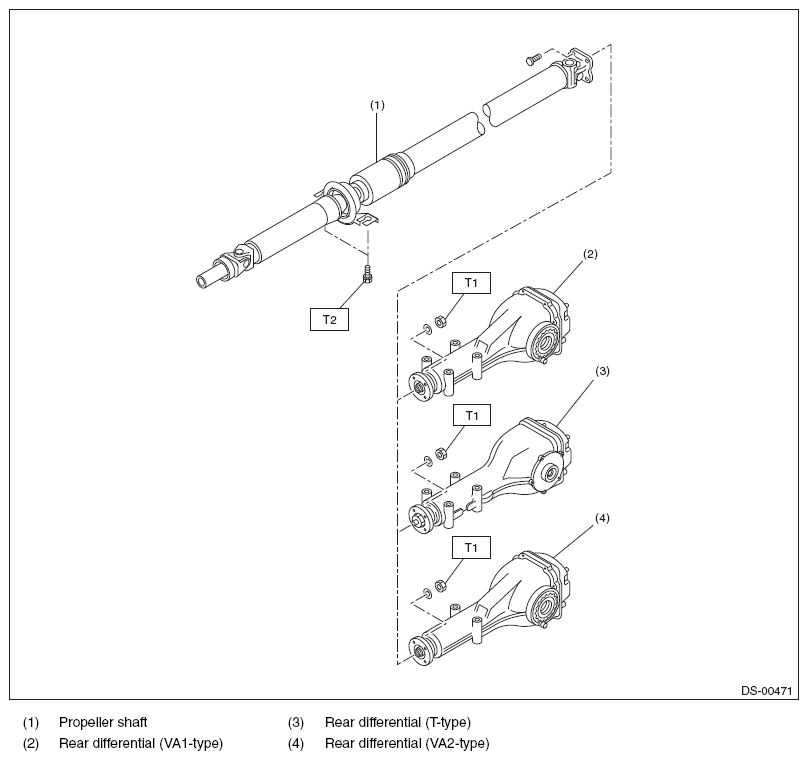

Fig 1: Propeller Shaft Replacement Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 31 (3.16, 22.9)
T2: 52 (5.3, 38.4)
Courtesy of SUBARU OF AMERICA, INC.
