Rear Differential Mounting System
Rear Differential Mounting System

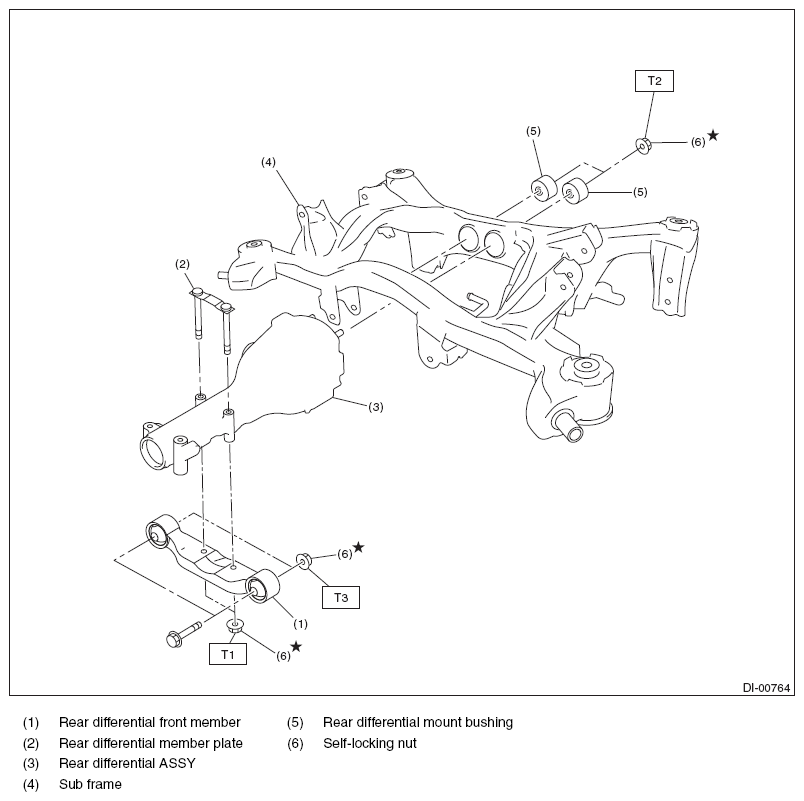

Fig 1: Rear Differential Mounting System Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 50 (5.1, 36.9)
T2: 70 (7.1, 51.6)
T3: 110 (11.2, 81.1)
Courtesy of SUBARU OF AMERICA, INC.
