DTC C0071 Steer Angle Sensor Op: Wiring Diagram

Vehicle Dynamics Control System < Refer to appropriate SYSTEM WIRING DIAGRAM. >

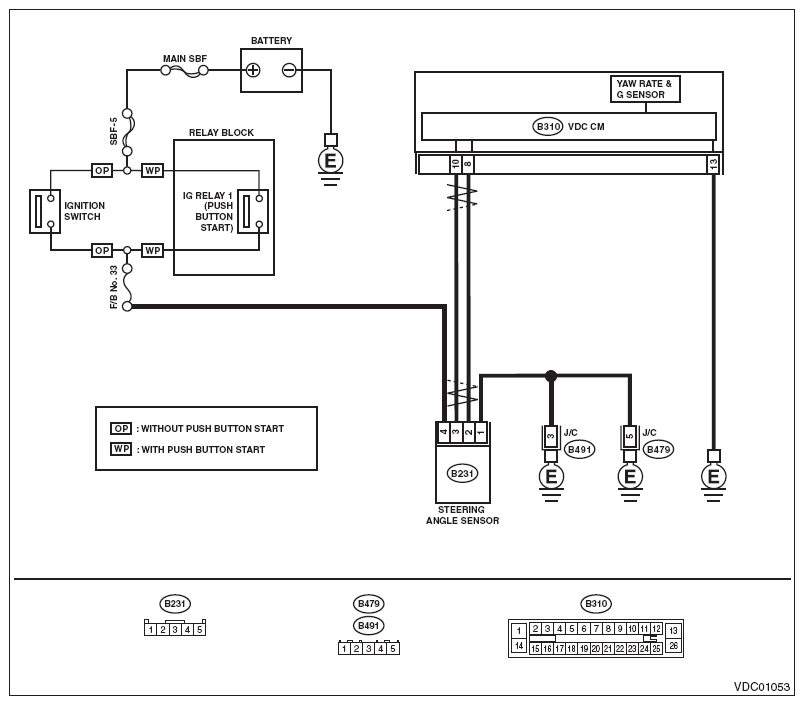

Fig 1: Steering Angle Sensor - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.
