Legacy Premium, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Vehicle Dynamics Control (VDC) System (Diagnostics)
>>
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
>>
DTC C0054 BLS On Malfunction
>>
Wiring Diagram
DTC C0054 BLS On Malfunction: Wiring Diagram
Stop light system < Refer to appropriate SYSTEM WIRING DIAGRAM. >

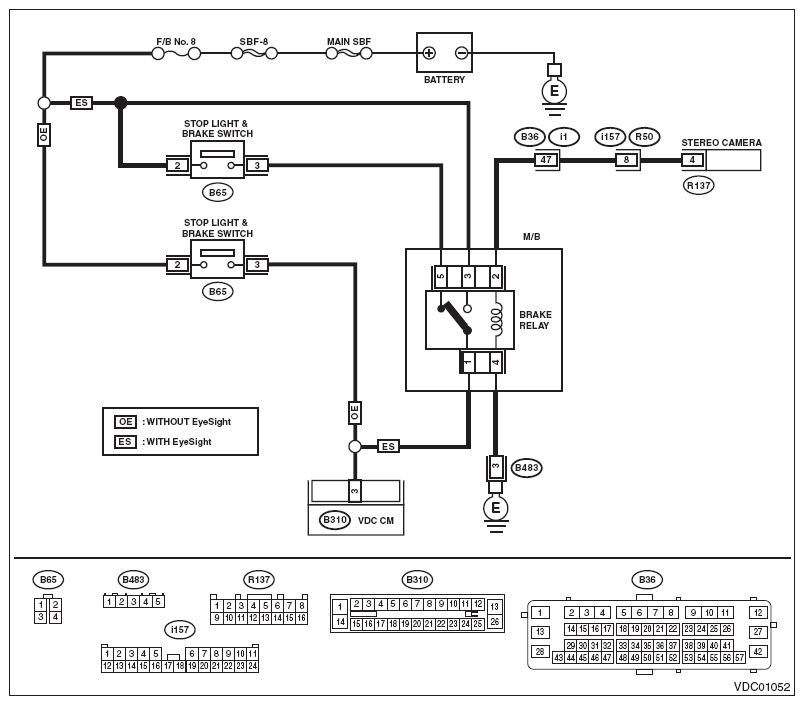

Fig 1: Stop Light System - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
