DTC C0054 BLS Off Malfunction: Wiring Diagram

Stop light system < Refer to appropriate SYSTEM WIRING DIAGRAM. >

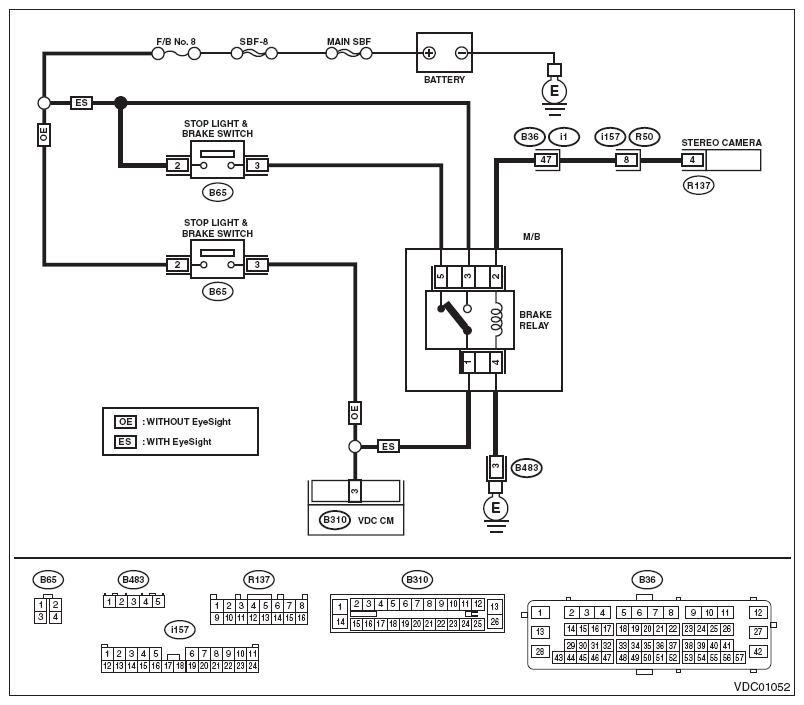

Fig 1: Stop Light System -- Wiring Diagram

G08583485

Courtesy of SUBARU OF AMERICA, INC.
