DTC C0027 Rear Left Abs Sensor Circuit Open Or Short: Wiring Diagram

Vehicle Dynamics Control System < Refer to appropriate SYSTEM WIRING DIAGRAM. >

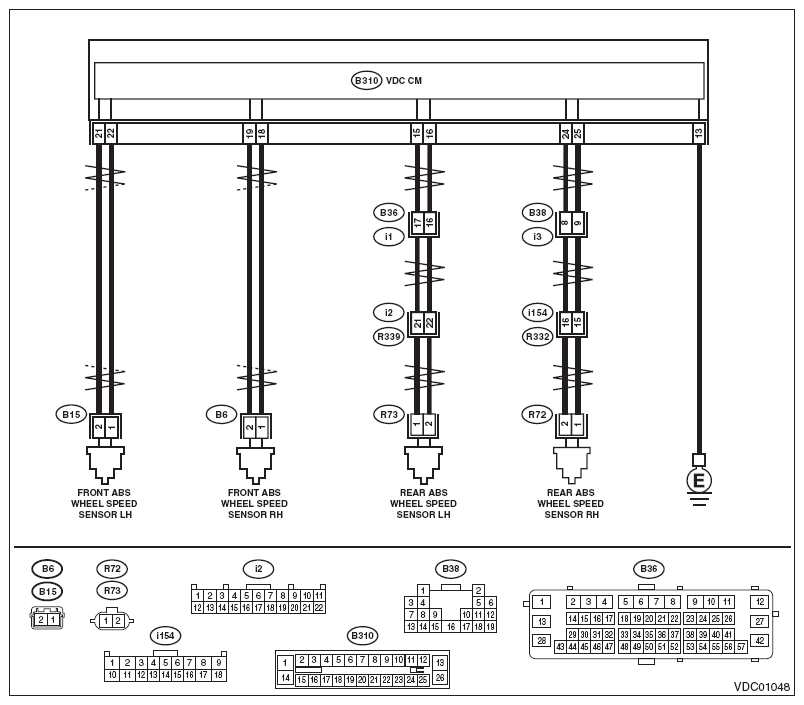

Fig 1: ABS Wheel Speed Sensor - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.
