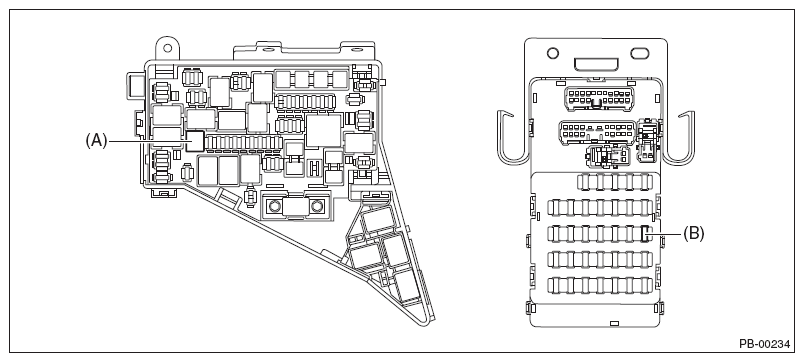

Relay and Fuse: Location
Courtesy of SUBARU OF AMERICA, INC.
| Main fuse box |
Fuse 30A (EPB CM) |
(A) |
| Relay & fuse box |
Fuse 7.5A (hill hold switch, EPB CM) |
(B) |
NOTE:
For other related fuses, refer to the wiring diagram. See appropriate SYSTEM WIRING DIAGRAM article.
