Warning Light Illumination Pattern: Inspection
Courtesy of SUBARU OF AMERICA, INC.

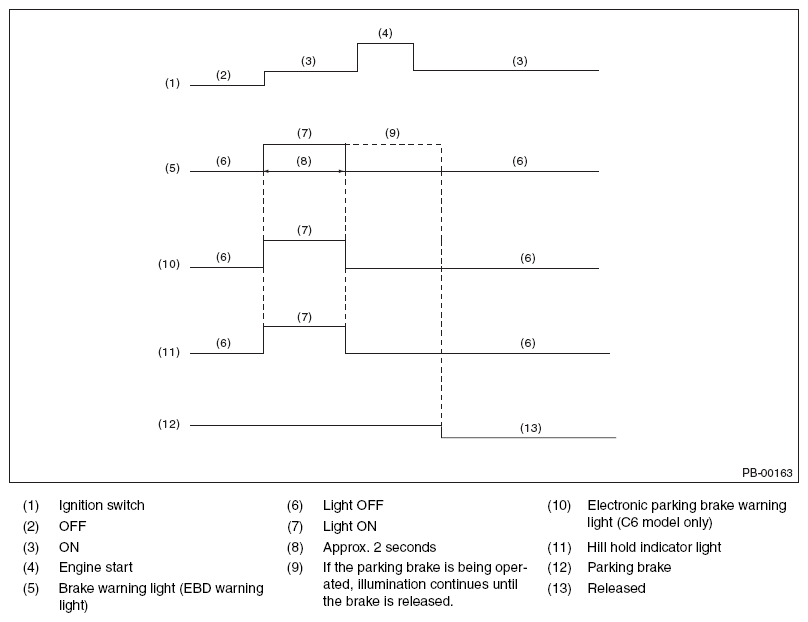

- When warning lights or indicator lights do not illuminate in accordance with this illumination pattern, there must be an electrical malfunction.
- When warning lights or indicator lights remain constantly OFF, check the combination meter circuit or CAN communication circuit. < Refer to
BRAKE WARNING LIGHT , ELECTRONIC PARKING BRAKE WARNING LIGHT AND HILL HOLD INDICATOR LIGHT DO NOT COME ON, Warning Light Illumination Pattern. >
- When the electronic parking brake warning light (C6 model only) and hill hold indicator light do not go off, check the combination meter circuit, CAN communication circuit and electronic parking brake control module. < Refer to
ELECTRONIC PARKING BRAKE WARNING LIGHT AND HILL HOLD INDICATOR LIGHT DO NOT GO OFF , Warning Light Illumination Pattern. > < Refer to
HILL HOLD INDICATOR LIGHT DO NOT GO OFF , Warning Light Illumination Pattern. >
- When the brake warning light does not go off, check the combination meter circuit, CAN communication circuit, electronic parking brake control module, and VDCCM&H/U. < Refer to
BRAKE WARNING LIGHT DOES NOT GO OFF , Warning Light Illumination Pattern. > < Refer to
BRAKE WARNING LIGHT REMAINS BLINKING , Warning Light Illumination Pattern. >
- After replacing the electronic parking brake control module, the brake warning light blinks. Make sure to perform the Force Sensor Calibration Mode and Clutch Sensor Calibration Mode. < Refer to
FORCE SENSOR CALIBRATION MODE , OPERATION, Subaru Select Monitor. > < Refer to
CLUTCH SENSOR CALIBRATION MODE , OPERATION, Subaru Select Monitor. >
- When operation and release of the parking brake is repeated excessively, the brake warning light blinks and the parking brake switch operation may not be accepted for several tens of seconds; this is not malfunction, however.
