Subaru Select Monitor: Inspection: Wiring Diagram

Parking brake/brake fluid level warning light system < Refer to appropriate SYSTEM WIRING DIAGRAM. >

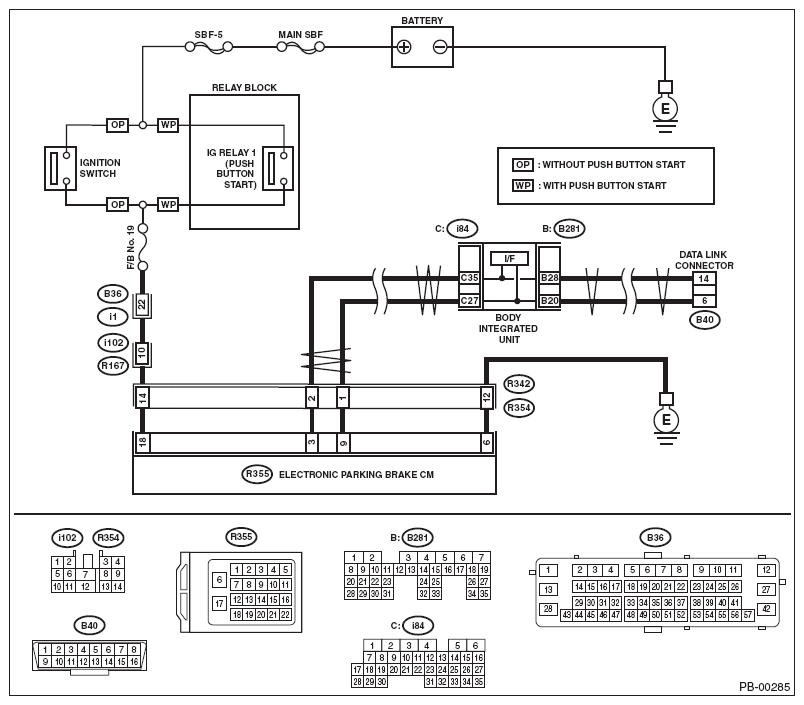

Fig 1: Electronic Parking Brake Control Module - Wiring Diagram
G08583627Courtesy of SUBARU OF AMERICA, INC.
Step Check Yes No
1 CHECK IGNITION SWITCH.  Is the ignition switch ON? Go to step . Turn the ignition switch to ON, and select {Parking Brake System} using the Subaru Select Monitor.
2 CHECK BATTERY.
  1. Turn the ignition switch to OFF.
  2. Measure the battery voltage.
Is the voltage 11 V or more? Go to step . Charge or replace the battery.
3 CHECK BATTERY TERMINAL.  Is there poor contact at battery terminal? Repair or tighten the battery terminal. Go to step .
4 CHECK LAN SYSTEM.
Perform the diagnosis for LAN system. < Refer to BASIC DIAGNOSTIC PROCEDURE . >
Is there any fault in LAN system? Perform the diagnosis according to DTC for LAN system. < Refer to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > Go to step .
5 CHECK SUBARU SELECT MONITOR COMMUNICATION.
  1. Press the parking brake switch once.
  2. Check whether communication with the parking brake system can be executed normally.
Is the system name displayed on Subaru Select Monitor? Check DTC of the parking brake system. < Refer to READ DIAGNOSTIC TROUBLE CODE (DTC) . > Go to step .
6 CHECK INSTALLATION OF ELECTRONIC PARKING BRAKE CM CONNECTOR.
Turn the ignition switch to OFF.
Is the electronic parking brake CM connector inserted into the electronic parking brake CM until the clamp locks onto it? Go to step . Insert the electronic parking brake CM connector into the electronic parking brake CM.
7 CHECK HARNESS CONNECTOR BETWEEN ELECTRONIC PARKING BRAKE CM AND CHASSIS GROUND.
Measure the resistance of harness between electronic parking brake CM connector and chassis ground.
Connector & terminal
(B355) No. 6 - Chassis ground:
Is the resistance less than 10 Ω? Go to step . Repair the open circuit of the electronic parking brake CM ground circuit and poor contact of connector.
8 CHECK POOR CONTACT OF CONNECTOR.  Is there poor contact of control module power supply, ground circuit and data link connector? Repair the connector. Replace the electronic parking brake CM. < Refer to PARKING BRAKE ACTUATOR . >
