Parking Brake System (Diagnostics): Electrical Component Location: Location

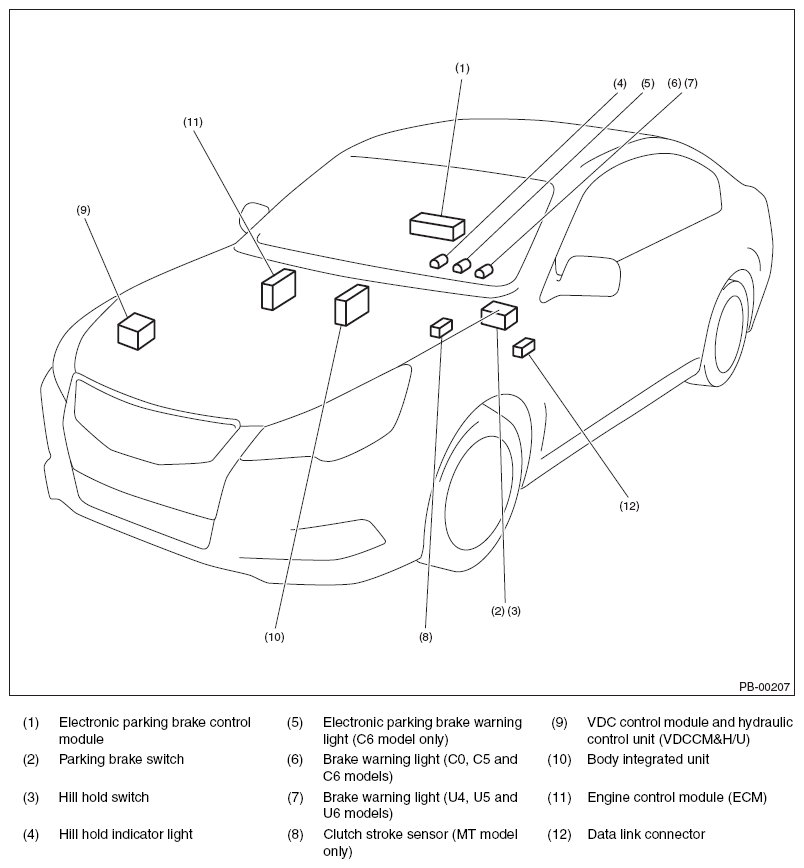

Fig 1: Parking Brake Electrical Components Location (1 Of 2)
G08583623Courtesy of SUBARU OF AMERICA, INC.

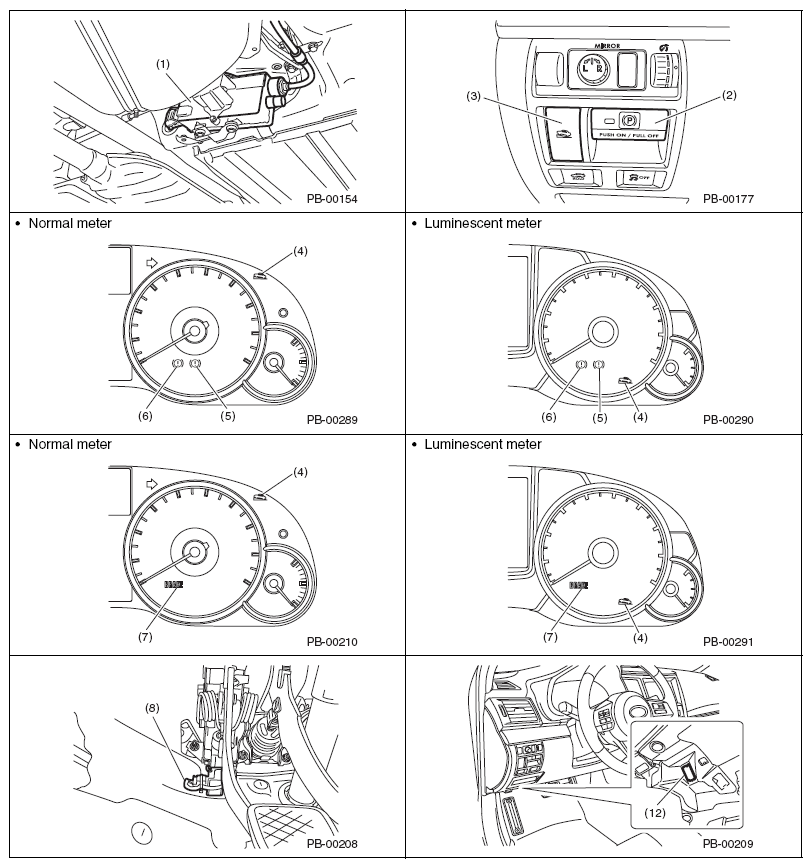

Fig 2: Parking Brake Electrical Components Location (2 Of 2)
G08583624Courtesy of SUBARU OF AMERICA, INC.
