DTC C0274 Clutch Sensor Circuit: Wiring Diagram

Parking brake/brake fluid level warning light system < Refer to appropriate SYSTEM WIRING DIAGRAM. >

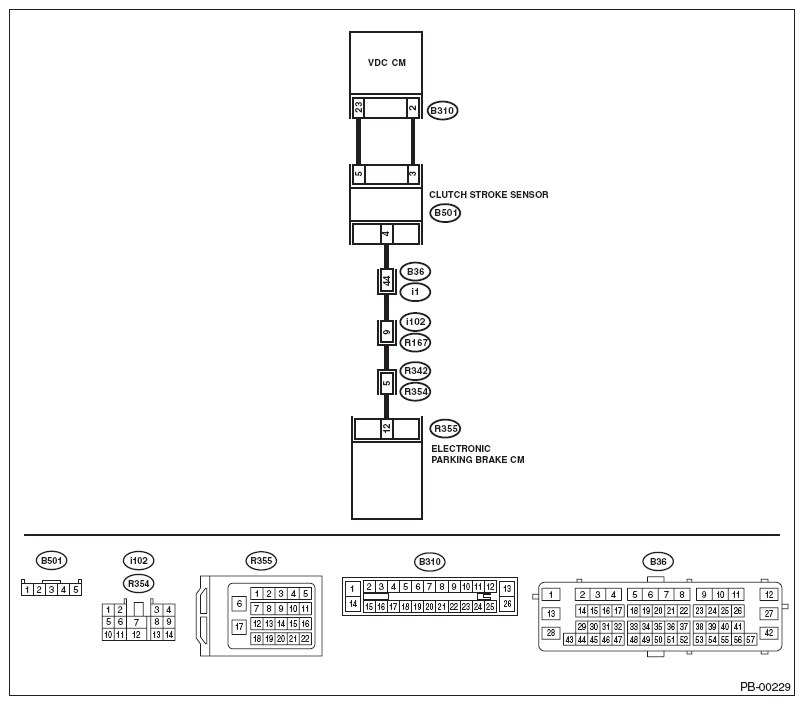

Fig 1: Clutch Stroke Sensor - Wiring Diagram
G07914260Courtesy of SUBARU OF AMERICA, INC.
