DTC C0241 Electrical Control Module: Wiring Diagram

Parking brake/brake fluid level warning light system < Refer to appropriate SYSTEM WIRING DIAGRAM. >

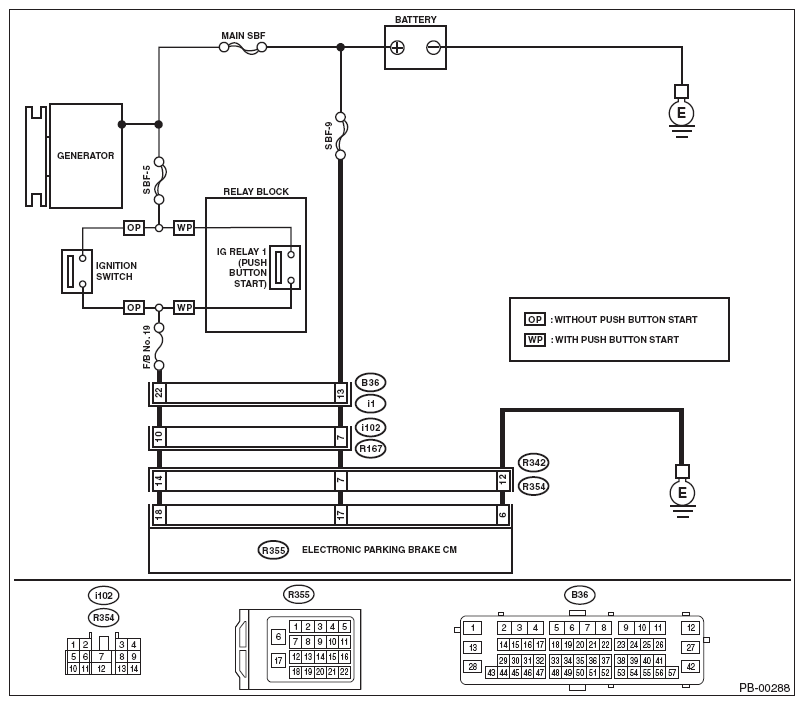

Fig 1: Electronic Parking Brake Control Module - Wiring Diagram
G08583634Courtesy of SUBARU OF AMERICA, INC.
