DTC C0221 Parking Position Switch: Wiring Diagram

Parking brake/brake fluid level warning light system < Refer to appropriate SYSTEM WIRING DIAGRAM. >

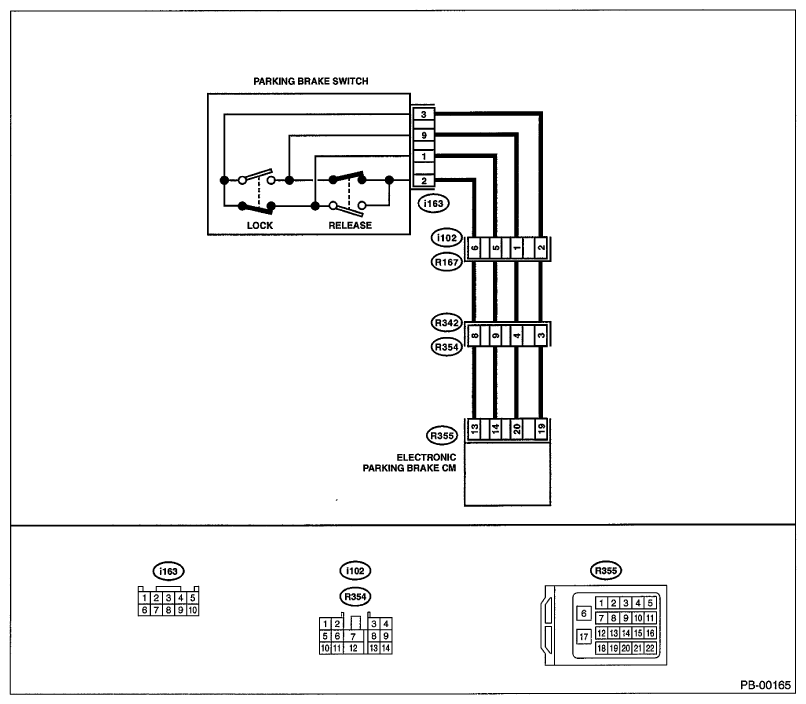

Fig 1: Electronic Parking Brake And Parking Brake Switch - Wiring Diagram
G06652765Courtesy of SUBARU OF AMERICA, INC.
