Master Cylinder: Installation

Replace the seal sub assembly for the master cylinder with a new part.
CAUTION: Be careful not to install the seal sub assembly in the wrong location.

Fig 1: Installing Master Cylinder Seal Sub Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install each part in the reverse order of removal.
CAUTION:
- Install the bracket at the position with sufficient clearance that it does not contact with the check valve.
- Be sure to loosen the master cylinder mounting nut while holding the bracket with hand. Otherwise the bracket may deform.

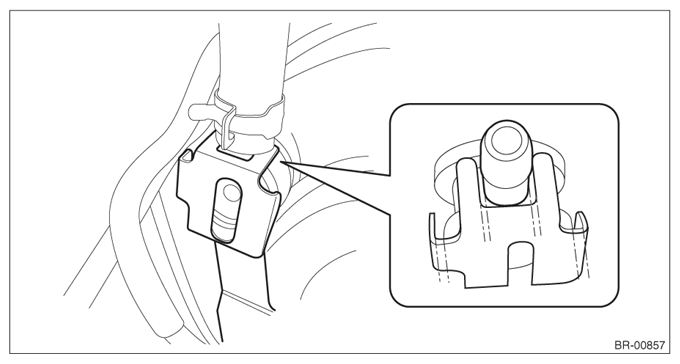

Fig 2: Identifying Master Cylinder Bracket Installation Position
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Master cylinder: 13 N.m (1.33 kgf-m, 9.6 ft-lb)

Brake pipe flare nut: 19 N.m (1.94 kgf-m, 14.0 ft-lb)
Bleed air from the brake system. Refer to PROCEDURE .
