Front Brake Pipes And Hoses

• Models without EyeSight

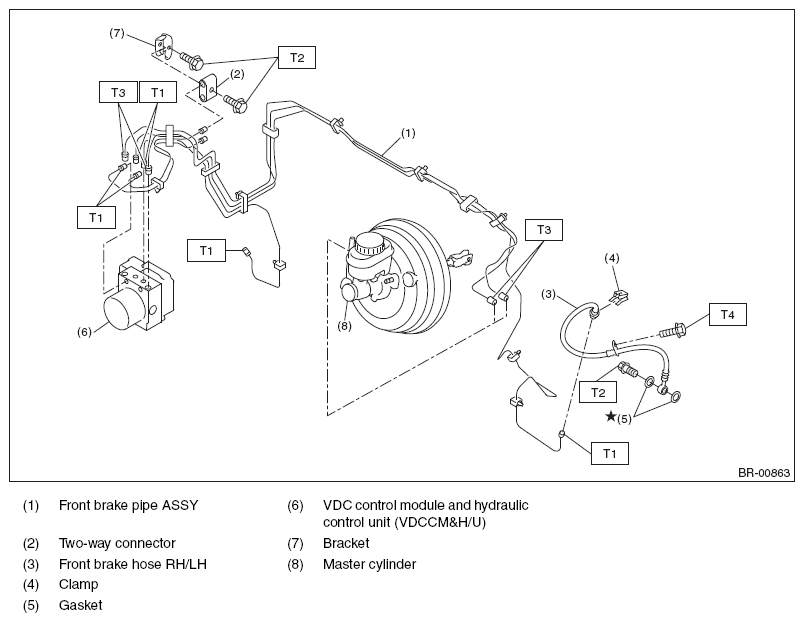

  Fig 1: Front Brake Pipes, Hoses And Related Replacement Components With Torque Specifications (Models Without Eyesight)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 15 (1.53, 11.1)

T2: 18 (1.84, 13.3)

• Models with EyeSight

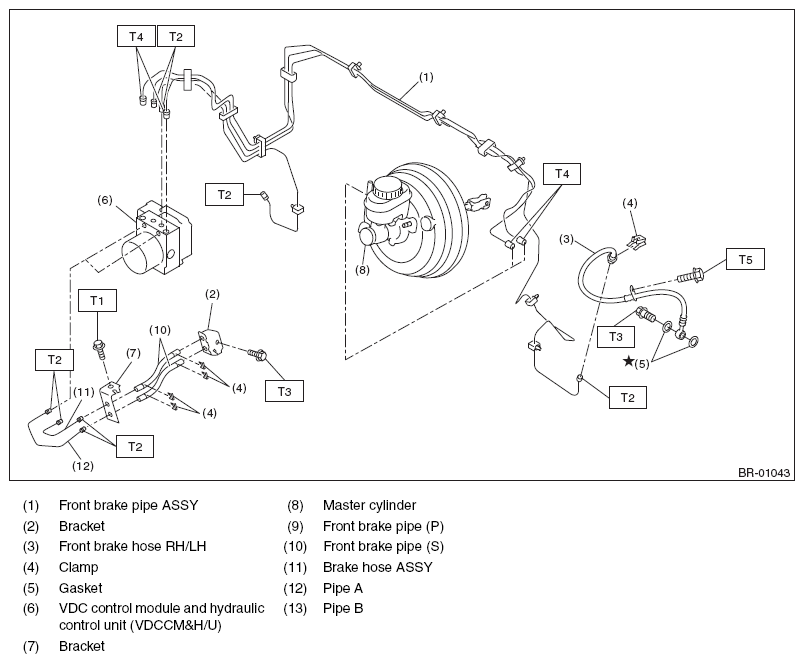

  Fig 2: Front Brake Pipes, Hoses And Related Replacement Components With Torque Specifications (Models With Eyesight)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 15 (1.53, 11.1)

T3: 18 (1.84, 13.3)

T4: 19 (1.94, 14.0)

T5: 33 (3.36, 24.3)
