Center And Rear Brake Pipes And Hoses

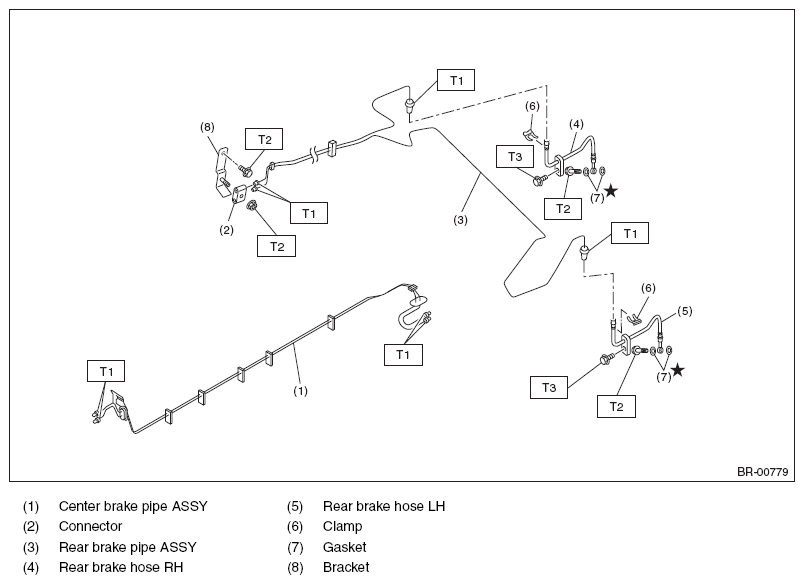

Fig 1: Center And Rear Brake Pipes And Hoses With Torque Specifications (Models With Eyesight)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 15 (1.53, 11.1)

T2: 18 (1.84, 13.3)

T3: 33 (3.36, 24.3)
