Front Brake Hose

  1. Separate the brake pipe (b) from brake hose (a) using a flare nut wrench.
  2. Remove the clamp, strut mounting bolt and union bolt, and remove the front brake hose.

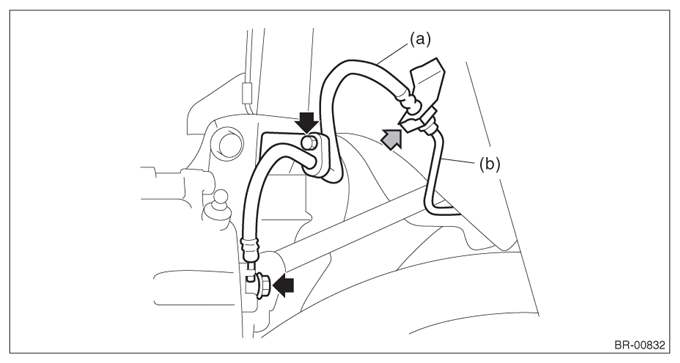

    Fig 1: Locating Front Brake Hose And Pipe Mounting Bolts
    G07915681Courtesy of SUBARU OF AMERICA, INC.
