Release lever cable (sedan model)

  1. Pull the release lever in the trunk room, and then tilt the backrest forward.
    Fig 1: Tilting Backrest Forward
    G06653344
  2. Remove the release lever assembly.
    1. Remove the wire cable from lock assembly.
    2. Remove the nuts, and then remove the lock assembly.
    3. Remove the wire cable holder.
    4. Press the stopper portion (a), and remove the release lever assembly while sliding it forward.

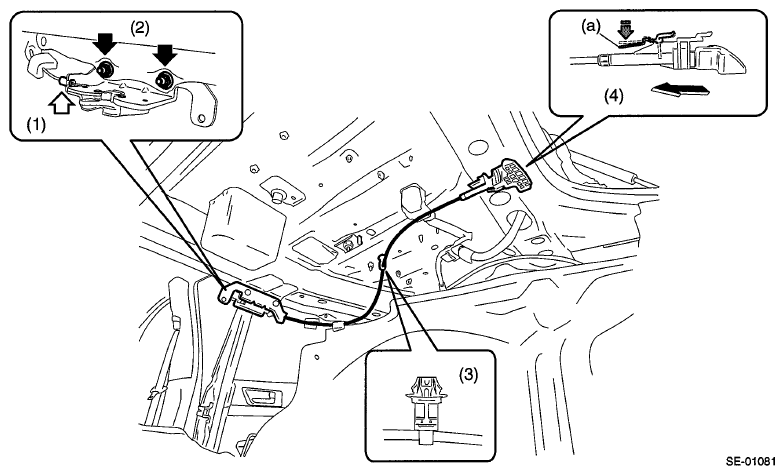

      Fig 2: Removing Release Lever Assembly
      G06653840
