Reclining cable (OUTBACK model)

Remove the rear seat cushion.
1. Pull up the seat cushion and release the hook.
  CAUTION: If the hook is disconnected from the vehicle body, replace the hook with the new part to prevent the decline of the fixed force of the seat.

  Fig 1: Identifying Rear Seat Cushion Hook

  Fig 2: Removing Rear Seat Cushion
2. Remove the hook (A) by pushing it back while lifting the front side of the seat cushion, and remove the seat cushion.

  Fig 3: Lifting Front Side Of Seat Cushion
Tilt the backrest and turn over the seat backrest cover.

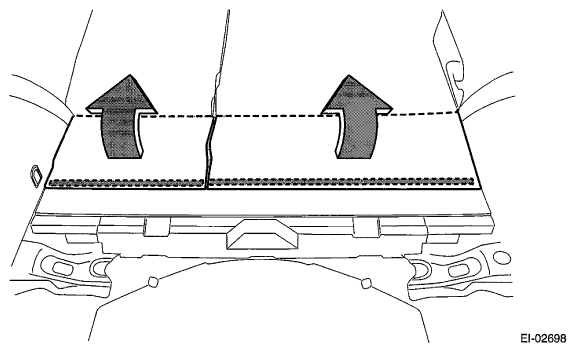

Fig 4: Turning Over Backrest Backside Mat
Remove the clips, and remove the rear floor mat - front.

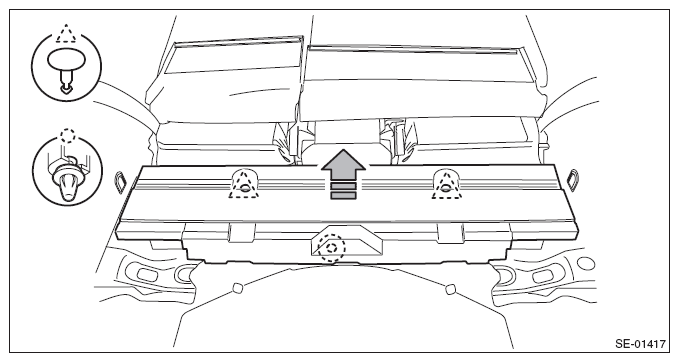

Fig 5: Removing Front Floor Mat
Remove the reclining lever assembly.
1. Disconnect the backrest cable and reclining lever cable.

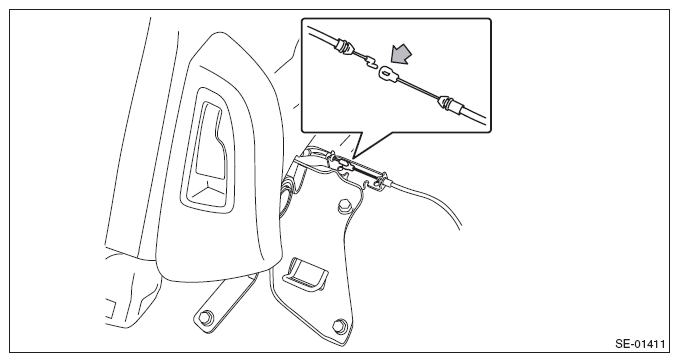

  Fig 6: Locating Backrest And Reclining Cable
2. Remove the screws.
3. By pressing the wire cable claws, remove the reclining cable from the side hinge assembly.

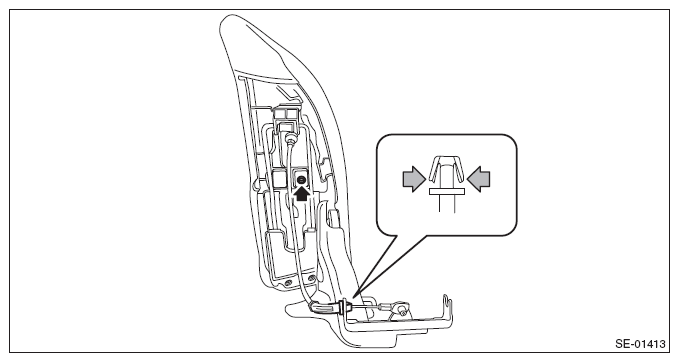

  Fig 7: Pressing Wire Cable Claws
