Rear Seat: Assembly

CAUTION:

Do not reuse hog rings.
Secure the hog ring using hog ring pliers.
Install the hog rings to the specified points securely and make sure that there is no wrinkle or twisting on backrest cover.

Assemble the seat cover in the same manner as the front seat. < Ref. to ASSEMBLY , Front Seat. >
Make sure that all hog rings (A) are attached securely.
- Sedan model

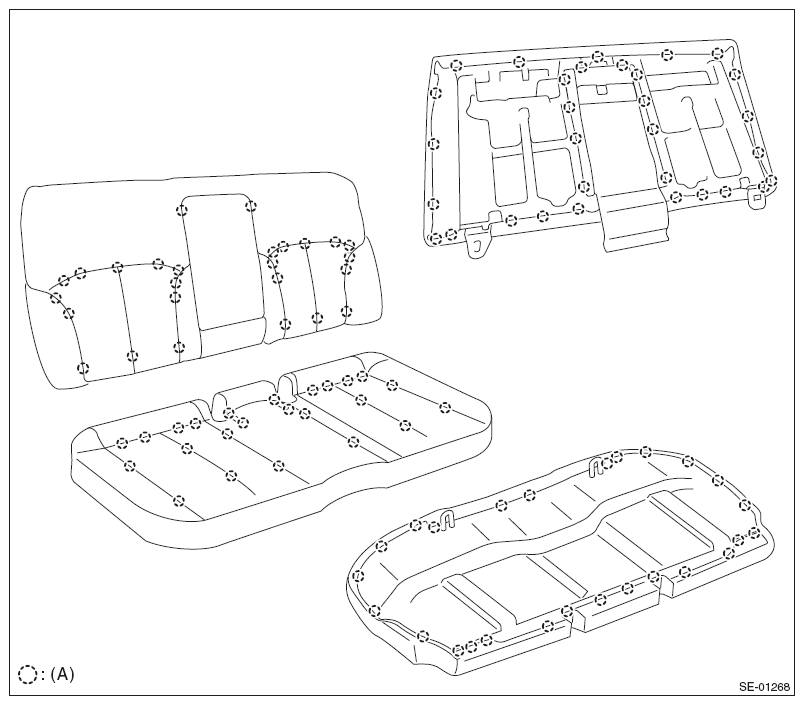

  Fig 1: Identifying Rear Seat Hog Rings (Sedan Model)
- OUTBACK model

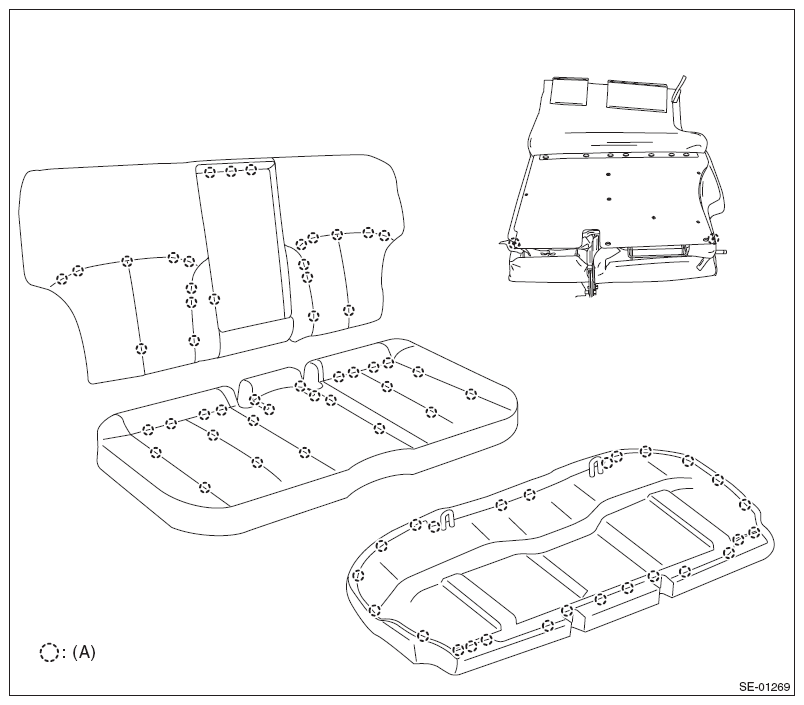

  Fig 2: Identifying Rear Seat Hog Rings (Outback Model)
Assemble each part in the reverse order of disassembly.
NOTE:
- Do not contaminate or damage the cover.
- While installing the hog rings, prevent the seat from getting wrinkled.
Tightening torque:

Refer to "COMPONENT" of "General Description".

Sedan model: < Ref. to REAR SEAT (SEDAN MODEL) , COMPONENT, General Description. >

OUTBACK model: < Ref. to REAR SEAT (OUTBACK MODEL) , COMPONENT, General Description. >
Before installation, check the following items.
- No break and fray on seat cover.
- No fray or deformation on each wire cable.
Install each part in the reverse order of removal.
