Power Seat Switch

  1. Remove the seat from vehicle. < Ref. to REMOVAL , Front Seat. >
  2. Remove the seat side cover OUT.
    1. Release the claw in the rear section of the seat side cover.
    2. Release the claw in the upper section of the seat side cover.
    3. Remove the clip and release the claw in the front section of the seat side cover
    4. Disconnect the power seat switch and lumber switch connectors and remove the seat side cover OUT.

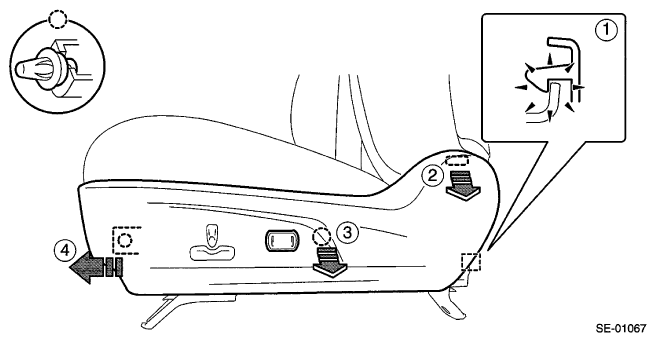

      Fig 1: Removing Seat Side Cover (OUT)
      G06653137
  3. Remove the screws to remove the power seat switch assembly.
    Fig 2: Locating Power Seat Switch Assembly Screws
    G05957933
