Roof Rail: Removal

  1. Remove the roof trim. Refer to OUTBACK MODEL .
  2. Remove the curtain airbag module. Refer to OUTBACK MODEL .
    CAUTION:
    • Refer to CAUTION .
    • Be careful not to damage the curtain airbag module during removal.
  3. Remove the eight installing nuts.

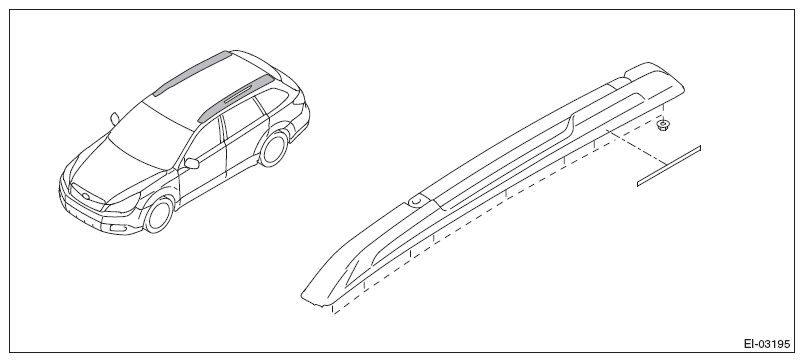

    Fig 1: Identifying Roof Rail Installing Nuts
    G08585164Courtesy of SUBARU OF AMERICA, INC.
