Mud Guard: Removal

  1. Lift up the vehicle.
  2. Remove the wheels.
  3. Remove the clips, then remove the mud guard.

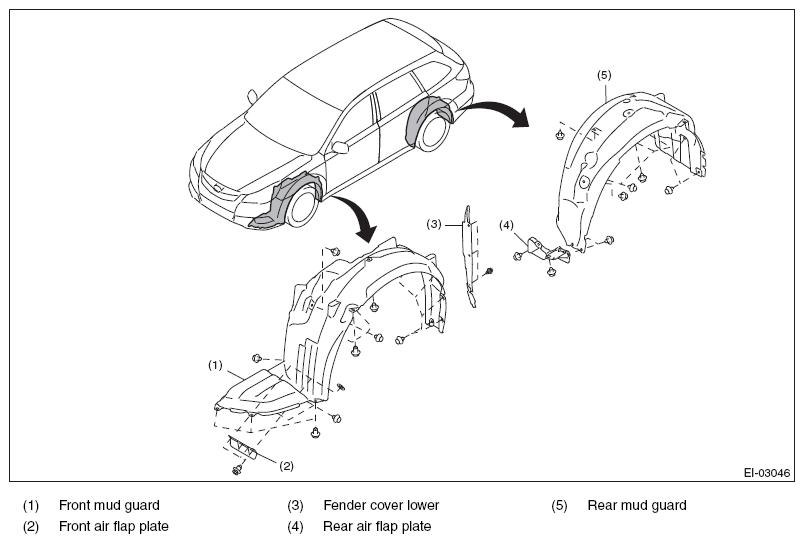

    Fig 1: Identifying Mud Guard Components
    G08585132Courtesy of SUBARU OF AMERICA, INC.
