Rear Heat Shield Cover

NOTE: For 2.5 L non-turbo model, refer to EXHAUST SYSTEM (H4DO) .

Remove the muffler. (H6 model) Refer to REMOVAL .
Remove the bolts, and remove the rear heat shield cover. (H6 model)

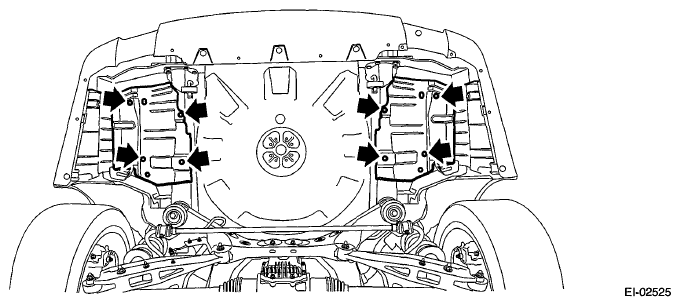

Fig 1: Locating Rear Heat Shield Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
