Fuel Tank Protector: Removal

  1. Lift up the vehicle.
  2. Remove the fuel tank protector.
    1. Remove the bolt and nuts and remove the fuel tank protector.
    2. Remove the clip.

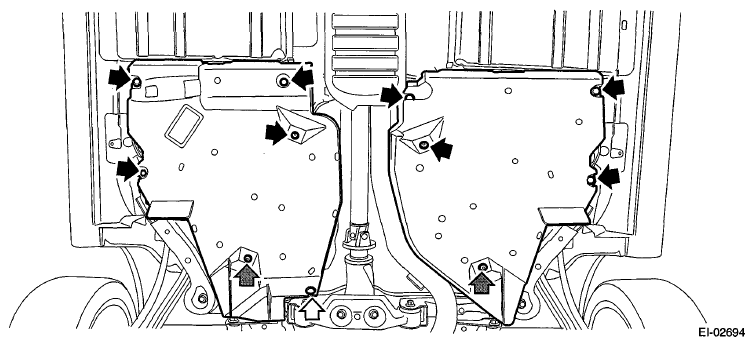

      Fig 1: Locating Fuel Tank Protector Bolt And Nuts
      G06653998Courtesy of SUBARU OF AMERICA, INC.
