Front Grille: Removal

Remove the front bumper face assembly.
1. Remove the clips and turn over the front end of front mud guard. (Model with fog light)

  Fig 1: Locating Front End Of Front Mud Guard Clips
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the front fog light connector. (Model with fog light)

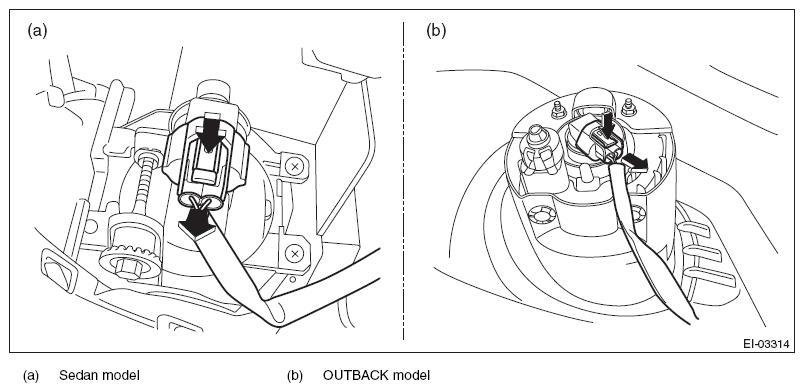

  Fig 2: Disconnecting Front Fog Light Connector
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the clips at the upper side of the bumper.
4. Remove the clips from the fender.
5. Remove the clips at the lower side of bumper.

  Fig 3: Locating Lower Side Of Bumper Clips
  Courtesy of SUBARU OF AMERICA, INC.
6. Detach the flange section on the bumper face side from the bracket side front UPR.
  CAUTION: Do not pull forcibly. It may damage the flange sections of the bumper face.

  Fig 4: Detaching Flange Section On Bumper Face Side From Bracket Side Front UPR
  Courtesy of SUBARU OF AMERICA, INC.

  NOTE: Pushing up the lower side (a) of the fog light, remove from (b) to (e).

  Detach the opposite side in the same manner.
Remove the front grille assembly.
1. Remove the screws from the back side of bumper face.
2. Release the claws, and remove the front grille assembly.

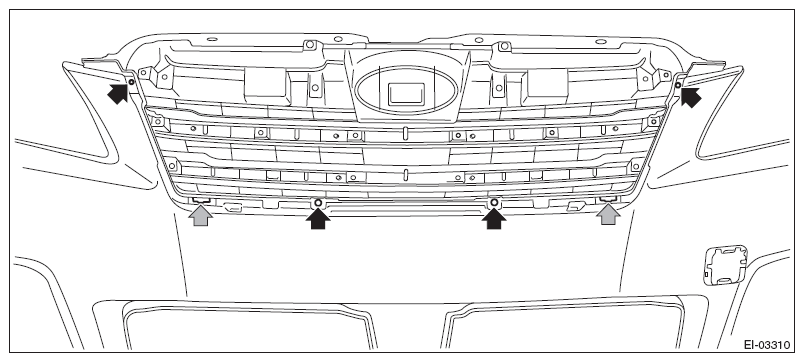

  Fig 5: Locating Front Grille Assembly Claws
  Courtesy of SUBARU OF AMERICA, INC.
