Floor Mat: Removal

Remove the front seat assembly. Refer to REMOVAL .
Remove the rear seat cushion assembly. Refer to REMOVAL .
Remove the console box assembly. Refer to REMOVAL .
Remove the console front side cover. Refer to CONSOLE FRONT COVER .
Remove the lower inner trim. Refer to REMOVAL .
Remove the pull handle cover.
1. Open the cover by using a flat tip screwdriver.
2. Remove the screw and remove the pull handle cover.

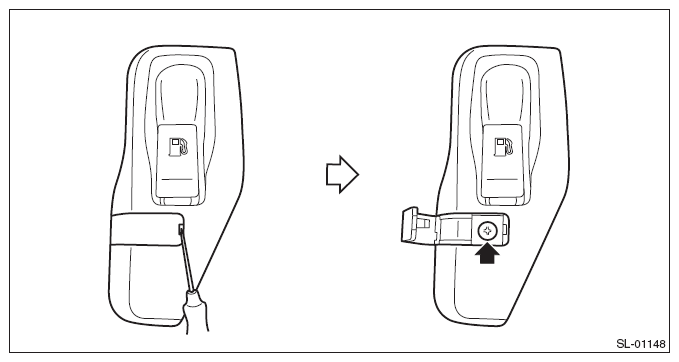

  Fig 1: Opening Cover By Using Flat Tip Screwdriver
  Courtesy of SUBARU OF AMERICA, INC.
Take out the floor mat from the vehicle.
1. Remove the clips from the floor mat.
2. Remove the mat hook on both sides.
3. Take out the floor mat after folding down.

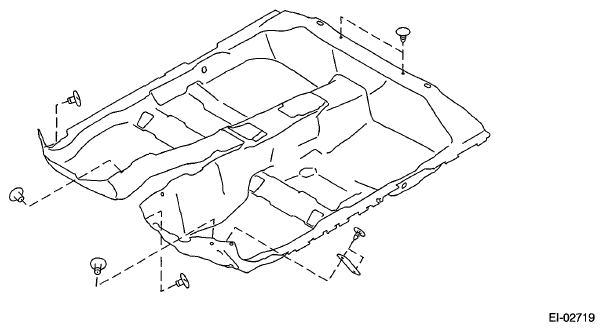

  Fig 2: Identifying Floor Mat Clips
  Courtesy of SUBARU OF AMERICA, INC.
