Door Trim: Disassembly

  1. Remove the door trim.
  2. Remove the rivets and detach the claws, then remove the weather strip inner from the door trim.

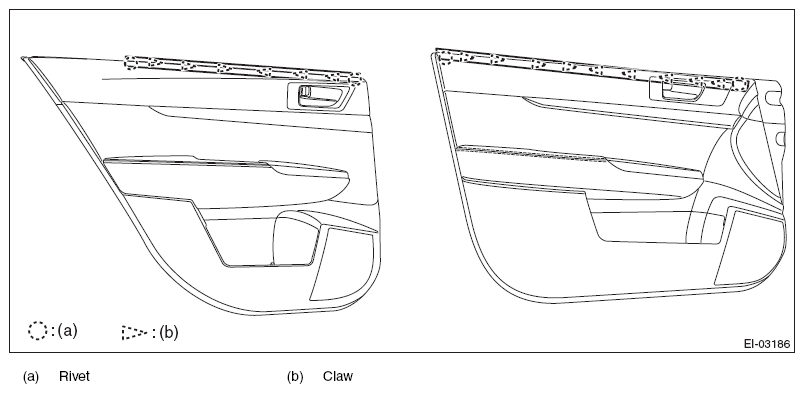

    Fig 1: Identifying Door Trim Rivets And Claws
    G08585170Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Remove the rivets with a rivet cutter or nipper, etc.
